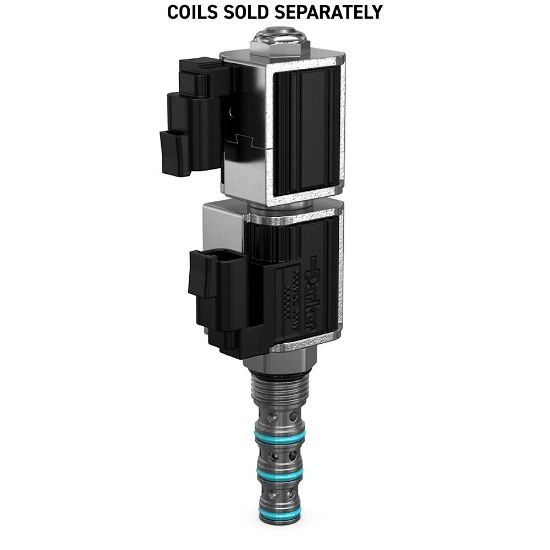

DSL105C9V - 4 Way 3 Position Spool Type Solenoid Valve

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU DSL105C9V

$146.38/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	5 GAL/MIN, 19 L/MIN
Actuation Type	Electrical	Configuration	Tandem Center
Seal Type	Fluorocarbon	Maximum Inlet Pressure Rating	3600 PSI, 250 BAR
Actuation Type	Electrical	Seal Material	Fluorocarbon
Body Material	n/a	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-26 °C	Maximum Operating Pressure	3600 psi
Override Functionality	n/a	Maximum Flow Rate	5 Gal/min
Flow Rate	5 Gal/min	Weight	0.64 lb
Operation Type	Solenoid Operated	Cavity Size	C10-4
Function	4-Way	Maximum Operating Temperature	+400 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Mounting Type	Screw in cartridge valve
Configuration	Tandem Center	Input Voltage	85% of rated voltage at 72°F (20°C) min
Coil Nut Tightening Torque	7-10 Nm	Coil Type	5/8" Super Coil
Maximum Inlet Pressure Rating	3600 psi	Leak Rate	160 @ 3600 PSI (250 BAR) cm3/min
Installation Torque	37-41 lb-ft	Response Time	40-150 ms
Maximum Tank Pressure	N/A psi
