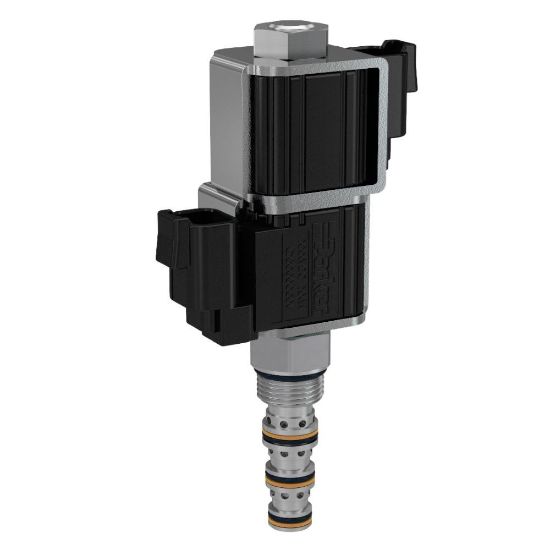

GS025300N - 4 Way 3 Position Spool Type Solenoid Valve

Name: GS025300N - 4 Way 3 Position Spool Type Solenoid Valve
SKU: GS025300N
Price: 127.84 USD
Availability: InStock

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

Availability:

11 in stock

Olivette, MO

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU GS025300N

$127.84/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Actuation Type	Electrical	Configuration	Floating Center
Flow Rate	4 GAL/MIN, 15 L/MIN	Seal Type	Nitrile
Actuation Type	Electrical	Seal Material	Nitrile
Body Material	n/a	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-34 °C	Weight	0.4 lb
Override Functionality	n/a	Maximum Operating Pressure	350 bar
Maximum Inlet Pressure Rating	5000 psi	Operation Type	Solenoid Operated
Installation Torque	30 Nm	Coil Nut Tightening Torque	3 lb-ft
Cavity Size	C08-4	Function	4-Way
Maximum Operating Temperature	+121 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Mounting Type	Screw in cartridge valve	Flow Rate	15 L/min
Leak Rate	250 @ 5000 PSI (350 BAR) cm3/min	Configuration	Floating Center
Coil Type	1/2" Super Coil	Input Voltage	85% of rated voltage at 72°F (20°C) min
Response Time	50 ms	Maximum Flow Rate	15 L/min
Maximum Tank Pressure	210 bar
