*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

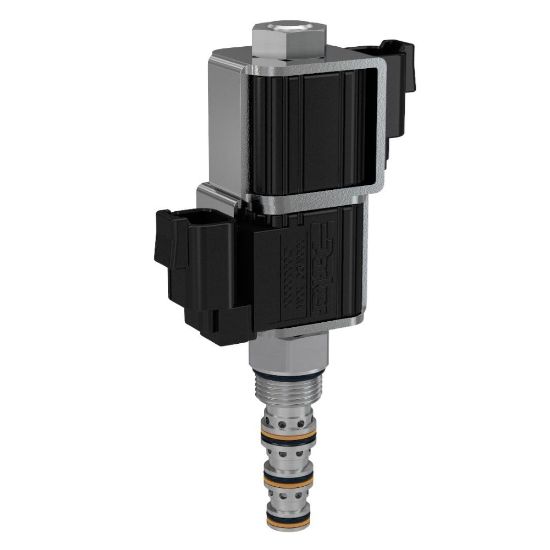

GS025700V - 4 Way 3 Position Spool Type Solenoid Valve

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU GS025700V

$148.52/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Actuation Type	Electrical	Configuration	Tandem Center
Seal Type	Fluorocarbon	Flow Rate	3.5 GAL/MIN, 13 L/MIN
Actuation Type	Electrical	Seal Material	Fluorocarbon
Body Material	n/a	Maximum Operating Pressure	5000 psi
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-15 °F
Weight	0.4 lb	Override Functionality	n/a
Maximum Inlet Pressure Rating	350 bar	Operation Type	Solenoid Operated
Installation Torque	30 Nm	Coil Nut Tightening Torque	3 lb-ft
Cavity Size	C08-4	Function	4-Way
Maximum Operating Temperature	+400 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Mounting Type	Screw in cartridge valve	Leak Rate	500 @ 5000 PSI (350 BAR) cm3/min
Configuration	Tandem Center	Coil Type	1/2" Super Coil
Input Voltage	85% of rated voltage at 72°F (20°C) min	Response Time	50 ms
Maximum Tank Pressure	3000 psi	Maximum Flow Rate	3.5 Gal/min
Flow Rate	3.5 Gal/min
