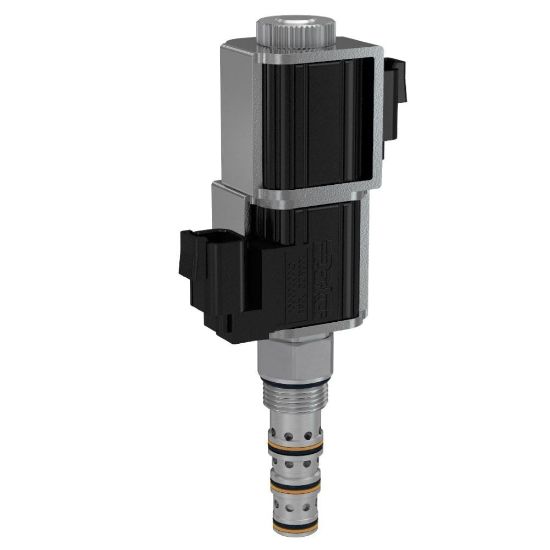

GS045250ND - 4 Way 3 Position Spool Type Solenoid Valve

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU GS045250ND

$187.30/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Flow Rate	11 GAL/MIN, 42 L/MIN	Actuation Type	Electrical, Manual
Configuration	Closed Center	Seal Type	Nitrile
Seal Material	Nitrile	Body Material	n/a
Maximum Operating Pressure	5000 psi	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-34 °C	Maximum Inlet Pressure Rating	5000 psi
Installation Torque	34 Nm	Coil Nut Tightening Torque	3 lb-ft
Cavity Size	C10-4	Maximum Flow Rate	42 L/min
Flow Rate	42 L/min	Function	4-Way
Weight	0.26 kg	Actuation Type	Electrical, Manual
Maximum Operating Temperature	+250 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Operation Type	Solenoid operated, Manually operated
Valve Material	All parts steel. All operating parts hardened steel	Mounting Type	Screw in cartridge valve
Configuration	Closed Center	Input Voltage	85% of rated voltage at 72°F (20°C) min
Coil Type	5/8" Super Coil	Leak Rate	160 @ 3000 PSI (210 BAR) cm3/min
Response Time	30-60 ms	Override Functionality	Push/Pull - Center Detent
Maximum Tank Pressure	210 bar
