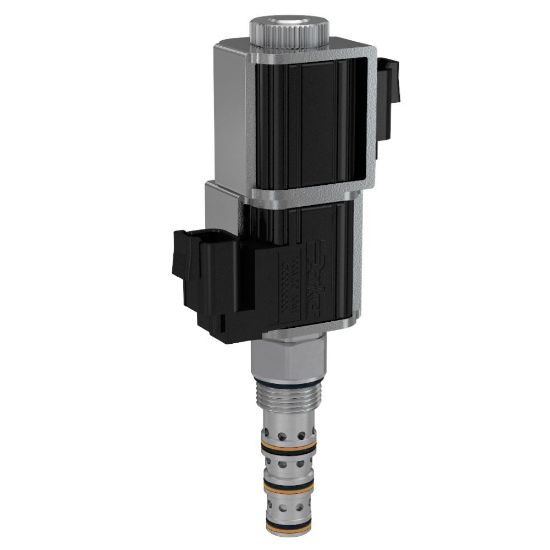

Picture of 4 Way 3 Position Spool Type Solenoid Valve - GS045400ND

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

4 Way 3 Position Spool Type Solenoid Valve - GS045400ND

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.
Availability:
Backordered
SKU GS045400ND
$149.93
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAMaximum Inlet Pressure Rating5000 PSI, 350 BAR
Flow Rate11 GAL/MIN, 42 L/MINActuation TypeElectrical
ConfigurationFloating CenterSeal TypeNitrile
Actuation TypeElectricalSeal MaterialNitrile
Body Materialn/aDivisionHydraulic Systems Division
Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)Minimum Operating Temperature-34 °C
Override Functionalityn/aMaximum Operating Pressure350 bar
Maximum Inlet Pressure Rating5000 psiOperation TypeSolenoid Operated
Installation Torque34 NmCoil Nut Tightening Torque3 lb-ft
Cavity SizeC10-4Maximum Flow Rate42 L/min
Flow Rate42 L/minFunction4-Way
Weight0.26 kgMaximum Operating Temperature+250 °F
Filter Efficiency RatingISO 4406 18/16/13, SAE Class 4For Fluid TypeMineral-based or synthetic hydraulic fluids
Valve MaterialAll parts steel. All operating parts hardened steelOperating Temperature-34 to +121 °C
Mounting TypeScrew in cartridge valveConfigurationFloating Center
Input Voltage85% of rated voltage at 72°F (20°C) minCoil Type5/8" Super Coil
Leak Rate160 @ 3000 PSI (210 BAR) cm3/minResponse Time30-60 ms
Maximum Tank Pressure210 bar
Product resources

Literature and Reference Materials
