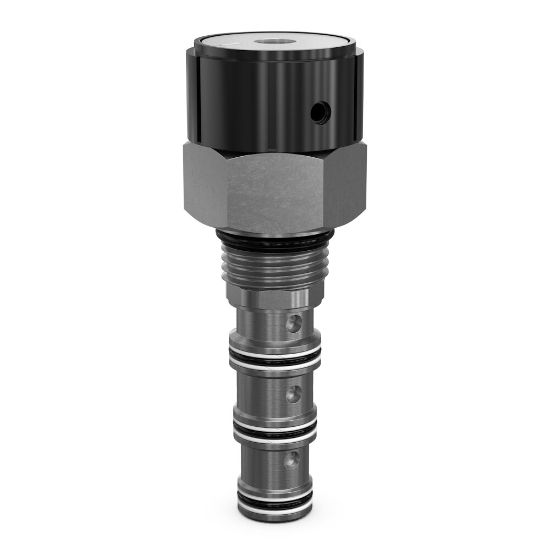

DM104K1 - 4 Way Rotary Type Manual Valve

REGIONAL - Parker’s manually operated 4-way, 2 or 3-position directional control spool valve is capable of flows up to 7.5 lpm (2 gpm) and pressures as high as 240 bar (3500 psi). Knob and lever actuators are available with detents.

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU DM104K1

$170.52/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	Knob	Detents	N/A
Spool Type	Closed Center	Seal Material	Nitrile
Body Material	n/a	Installation Torque	22 Nm
Maximum Operating Pressure	240 bar	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Inlet Pressure Rating	3500 psi	Minimum Operating Temperature	-30 °F
Operation Type	Manual	Weight	0.11 kg
Cavity Size	C10-4	Maximum Operating Temperature	+250 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Function	Spool Type
Leak Rate	164 @ 3500 PSI (240 BAR) cm3/min	Configuration	Knob
Actuation Type	Rotary	Maximum Flow Rate	7.5 L/min
Maximum Tank Pressure	500 psi	Detents	N/A
Rotation Angle	90 °	Spool Type	Closed Center
Flow Rate	7.5 L/min
