| UOM | EA | Note | On 40-400, 40-410, 40-500, 40-510, 60-400, 60-410, 60-500, and 60-510 models with 20,000 psi, the accuracy is ± 1.5% or 1.6%. |
| Application | - Chemical processing
- Oil field & offshore
- Paper mills
- Agriculture plants
- Marine
- Water & wastewater
| Prop 65 Warnings |  WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Limitations Which Apply Are | - Bourdon tube pressure gauges must be used within their calibrated maximum range to prevent damage
- The pressure gauges must be operated within the following working pressure limits:
- Dynamic Pressure application, 60% of the dial range
- Static Pressure applications, where no sharp fluctuations occur, 90% of the dial range
- The gauges must be operated within specified ambient temperature ranges
- Determination of gauge failures will be made by NOSHOK, Inc., which will use its equipment and personnel or a certified test facility specializing in this type of evaluation and determination. Gauge failures determined to be caused by over-range, incompatibility with environment or product media and abuse will not be considered under this warranty. NOSHOK, Inc. will, at its discretion, repair or replace the working parts of the damaged gauge without cost to the customer. This written warranty applies only to the NOSHOK gauges referenced in the first paragraph of this warranty, sold by NOSHOK, Inc. and its authorized distributors.
| Warranty_yr | 3 |
| Distribution Manifolds | NOSHOK's Distribution Manifolds connect multiple instruments to one diaphragm seal, eliminating multiple connections that lead to possible leak paths. | Caution | Operating conditions including, but not limited to, system pressure, media compatibility and ambient conditions must be considered when selecting gauges and accessories. Improper selections and use of gauges could possibly cause gauge failure and lead to possible property damage or personal injury. Refer to the American National Standard ANSI B40.1 for the correct selection and use of gauges. A copy of this standard may be obtained from the American Society of Mechanical Engineers, United Engineering Center, 345 East 47th Street, New York, NY 10017.
In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice. |
| Related Items | 204-MFS, 1/2" National Pipe Thread (NPT), Male x Female, 316 Stainless Steel, 0.187" Orifice Hard Seat Multiport Valve 2070-MFS, 1/2" National Pipe Thread (NPT), Male x Female, 316 Stainless Steel, Hard Seat, 0.187" Orifice Block and Bleed 2-Valve 404-MFS, 1/2" National Pipe Thread (NPT), Male x Female, 316 Stainless Steel, Hard Seat, 0.187" Orifice Needle Valve 704-MFS, 1/2" National Pipe Thread (NPT), Male x Female, 316 Stainless Steel, Soft Seat, 0.187" Orifice Block and Bleed Valve | Steam Syphons | - Protect the instrument from the damaging effects of high temperature steam
- Recommended for use in all steam applications
- Available in 1/4" and 1/2" NPT sizes in welded steel, welded 316 Stainless Steel or seamless 316 Stainless Steel with ratings to 3,800 psi at 850 ºF
|
| Pressure Range | 0 to 5,000 psi | Diaphragm Seals | NOSHOK offers a wide variety of standard & elevated pressure, and reduced pressure replaceable and non-replaceable diaphragm seals, designed to isolate and/or protect the pressure measuring instrument from corrosive, viscous, contaminated or very high temperature process media. |
| Swivel Adapters | - Temperature ratings: 15,000 psi at 200 ºF and 3,000 psi at 1,000 ºF
- Used with gauges and gauge valves to adjust the line of sight
- Rotates 360º to allow the connected instrument to be positioned in the desired direction
- The pressure connection is achieved with a tapered cone style compression fitting simply by tightening the swivel hex nut
- All 316 Stainless Steel construction
- Standard with 1/2" NPT male process - 1/2" NPT female instrument connections
- Also available with 1/4" NPT connections, same specifications apply
- Weight approximately 0.8 lb.
| Process Connection Size | 1/2 in |
| Pressure Range (Search only) | 0 to 5,000 psi | Pressure Snubbers - Piston Type | - Resist clogging and are self-cleaning
- Five different sized pistons included with each snubber to ensure the correct amount of snubbing for virtually every application
- Available in Brass and 316 Stainless Steel in 1/4" NPT, 1/2" NPT or SAE J1926-3: 7/16-20
- Weight approximately 0.2 lb. for 1/4" & 7/16", and approximately 0.4 lb. for 1/2"
|
| Pressure Snubbers - Sintered Type | - Cost effective solution to protect expensive instrumentation
- Increases gauge readability by smoothing out pressure surges, pulsations and spikes
- 5 basic elements available for each snubber to accommodate specific application needs
- Snubbing action achieved by utilizing a corrosion resistant 316 Stainless Steel sintered porous element
- Exotic materials or intermediate disc grades available
- Provides long service life with no moving parts to wear out
- Weight approximately 0.2 lb. for 1/4" & 7/16", and approximately 0.4 lb. for 1/2
| Installed Options and Accessories | Available- 10-32-UNF-2B (10-32)
- Orifice - 316SS Threaded 0.8 mm (ST8) - Standard
- Orifice - 316SS Threaded 0.5 mm (ST5)
- Laser Marking (LM)
- Stainless Steel Tagging (ST)
Certificates- Certified Calibration (CC), Vacuum through 15,000 psi
- Cleaning for Oxygen Service (O2), Up to 1,000 psi
- Cleaning for Oxygen Service (O2), 1,500 psi and up
|
| Accuracy | ±1.0% Full Scale | Measuring Element | Coiled Safety Tube |
| Uninstalled Options and Accessories | <ul><li>Certificate of Cleaning (COCL)</li><li>Certificate of Conformance (COC)</li></ul> | Ammonia Refrigeration Gauges | Ammonia and refrigeration gauges with dials reading in both pressure and temperature are available in 400/500 Series 2-1/2" and 4" sizes |
| Working Pressure Limitations | Dynamic Pressure
The working pressure should be limited to 60% of the dial range.
Static Pressure
The working pressure, where no sharp fluctuations occur, should be limited to: ≤15,000 psi: 90% of the dial range, >15,000 psi: 75% of the dial range | Metric Dials and Customized Special Dials | - Dual scale metric dials in psi/bar, psi/kPa and psi/kg/cm2
- Other scales are available for specific sizes and ranges, such as single scale bar and kPa, refrigerant scales and altitude scales
- Customized special dials such as non-standard metric scale, tons of ram, lbs. of force, etc. are available in small quantities (as few as one piece) on some NOSHOK gauges
Please consult the factory for availability. |
| Assembly Option for Indication, Output, and Isolation/Bleed | NOSHOK offers multiple assembly options to meet your specific system requirements. Consult factory to discuss your customized solution.
For example, you can simplify your system with this easy-to-install solution from NOSHOK. Three simple components that require a single threaded connection in your piping system will provide local indication, analog output and block/isolate with bleed function. This product grouping is an ideal solution for a variety of applications including oil and gas, and is available in several high pressure ranges, including 5,000, 10,000 and 15,000 psi. Special design for Shale Gas applications.

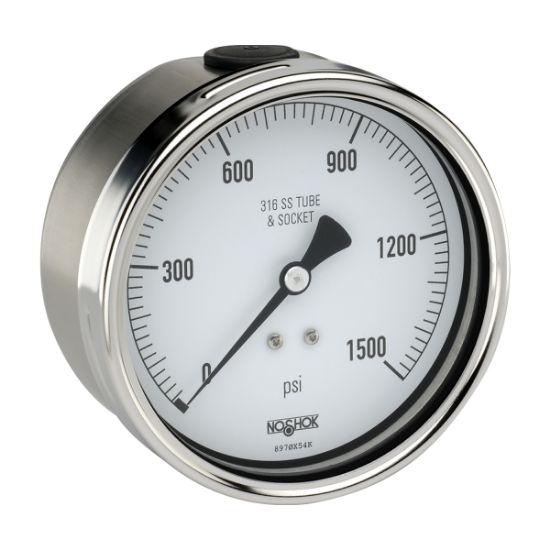

This example represents a general solution; however, we offer a diverse range of gauges, transmitters and valves which are available with a variety of connection options and ranges to suit your needs. (Photo shows 40-400 Series Pressure Gauge (Local Indication), 621 Series Pressure Transmitter (Control Output), and 200 Series Multi-Port Valve (Block/Isolate & Bleed). | Type | Pressure Gauge |
| Process Connection | 1/2" NPT | Pointer | Balanced Aluminum, Black Finish |
| Inch/Metric | Inch | Scale Option | psi Single Scale |
| Gauge Size_in | 4 | Connection Location | Back |
| Process Connection Type | National Pipe Thread (NPT) | Connection Material | 316 Stainless Steel |
| Ambient Temperature Range_ºC | -40 to 60 | Ambient Temperature Range_ºF | -40 to 140 |
| Case Type | Stainless Steel (SS) Case, Liquid Filled, Back Connection | Pressure Range_psi | 0 to 5,000 |
| Lens/Display Material | Instrument glass | Cover Ring Material | Polished 304 Stainless Steel |
| Fill Liquid | Glycerin | Ambient Temperature Range (Glycerin Fill)_ºC | -20 to 60 |
| Ambient Temperature Range (Glycerin Fill)_ºF | -4 to 140 | Series | 500 |
| Media Temperature Range (Special Fill)_ºC | -40 to 100 | Media Temperature Range (Special Fill)_ºF | -40 to 212 |
| Media Temperature Range (Glycerin Fill)_ºC | -20 to 100 | Media Temperature Range (Glycerin Fill)_ºF | -40 to 212 |
| Movement | All Stainless Steel with Internal Zero Stop and Highly Polished Bearing Surfaces | Joint Connection | 1/2 in National Pipe Thread (NPT) |
| Dial/Display Size | Aluminum, White Background with Black Scale. Ultraviolet (UV) Resistant. | Material | Polished 304 Stainless Steel with Safety Relief Plug |
