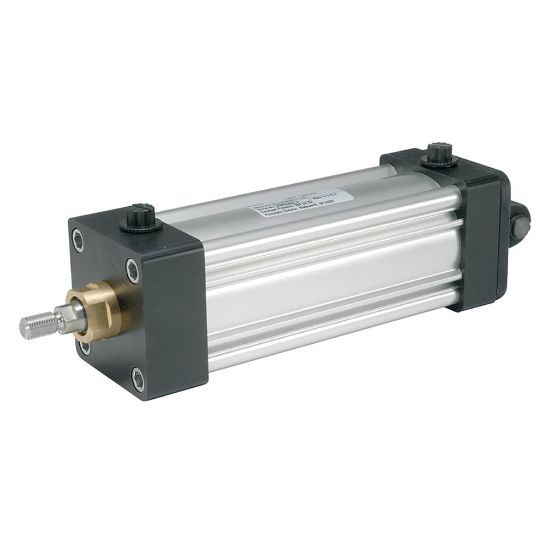

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

4.00CBB4MA2U34AC20.00

Manufacturer: Parker Hannifin

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 4.00CBB4MA2U34AC20.00

$786.55/each

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Clear Anodized Aluminum Alloy
Series	4MA	Style	Tie Rod, NFPA
Port Size	1/2 Inch	Stroke Length	20 Inch
Lube Specification	Non Lube Design	Corrosion Resistant	Yes
Filtration Required	40 micron	Piston Material	Aluminum
Rod End Style	Male, Small	Filter Media	Filtered Air
Rod Material	Case Hardened, Chrome-Plated Carbon Steel	Rod Diameter	1 3/8 Inch
End Type	Single Rod	Port Type	NPTF
Min. Temperature Range	-10 °F	Rod End Thread	1-14
Magnetic Ring	No	Seal Material	Nitrile
Max. Temperature Range	165 °F	Cushions	Cushioned, Both Ends
Piston No.	3	Mounting Style	MP1
Bore Size	4 Inch	Bumpers	w/o Bumpers
Mounting Style Code	BB	Seal Type	Lipseal
Rod Thread Type	UNF	Max. Pressure	250 psig
