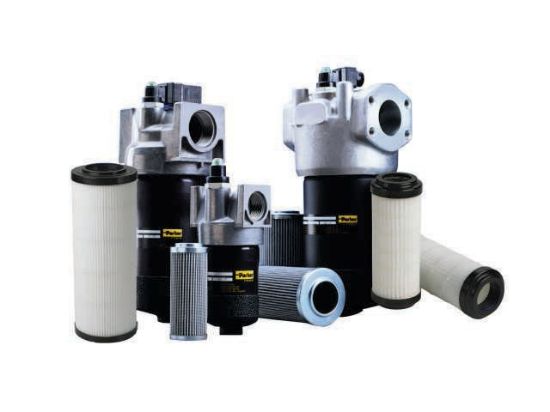

40CN Series Medium Pressure Filter - 40CN105QEBE2KN164

Name: 40CN Series Medium Pressure Filter - 40CN105QEBE2KN164
SKU: 40CN105QEBE2KN164

40CN Series Hydraulic and Lube Oil Medium Pressure Filter

Availability:

Backordered

SKU 40CN105QEBE2KN164

$467.82

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
Pkg Qty	1	Operating Temperature	-40F to 225F (-40C to 107C)
Element Length	Single	Seals	Nitrile
Nominal Flow Rating	15 GPM (57 LPM)	Nominal Filter Rating	5 micron
Port	1 NPT	Indicator Type	Electrical/Visual (DIN-43650 Connection)
Bypass	50 PSI (3.5 bar)	Max Pressure - Non-Fatigue MAOP	1000 psi (69 bar)
Options	SAE-4 drain port on bowl	Max Pressure - Fatigue MAOP	800 psi (55.2 bar)
Replacement Element	936707Q	Parker Group	Filtration
Parker Division	Hydraulic Filter	Operating Temperature	-40F to 225F (-40C to 107C)
Element Length	Single	Port Type	NPT
Seals	Nitrile	Filter Type	Medium Pressure Filter
Filter Media Type	Ecoglass III	Nominal Flow Rating	15 GPM (57 LPM)
Filter Media Code	05QE	Nominal Filter Micron Rating	5 micron
Port	1 NPT	Indicator Type	Electrical/Visual (DIN-43650 Connection)
Bypass	50 PSI (3.5 bar)	Max Pressure - Non-Fatigue MAOP	1000 PSI (69 bar)
Options	SAE-4 drain port on bowl	Max Pressure - Fatigue MAOP	800 PSI (55.2 bar)
Series	40CN

Product resources

CN Series (PDF)
