422 Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

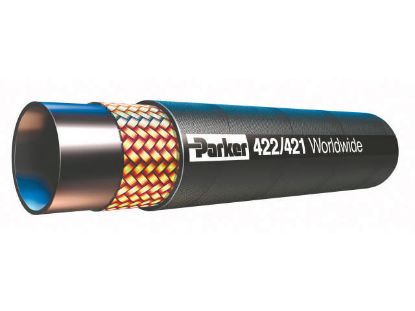

Medium pressure hydraulic hose for use with petroleum base hydraulic fluids and lubricating oils. Inner Tube: Nitrile rubber. Reinforcement: One braid steel wire. Cover: Synthetic rubber.
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Inner Diameter | Material | Pkg Qty/UOM | Pkg Qty | Working Pressure | Mating Fitting Series | Parker Group | Inch/Metric | Parker Division | Inner Diameter | Inner Diameter Inch/mm | Material | Working Pressure Range | Application | Hose Pressure Range | Hose Category | Distinct Properties | Series | Mating End Fitting Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 422-10-RL | Backordered | 11 in stock | $8.59/foot | FT | FT | 0.625 Inch | Rubber | 275 FT | 275 | 1875 PSI (130 bar) | 43, 42 | Fluid Connector | Inch | Hose Products | 0.625 Inch | Inch | Rubber | 1000 to 1999 PSI (69 to 138 bar) | Hydraulic | Medium | Hydraulic Industry Standard | Worldwide DIN | 422 | 43, 42 | |
| 422-12-BX | Backordered | 30 in stock | $16.34/foot | FT | FT | 0.75 Inch | Rubber | 50 FT | 50 | 1525 PSI (110 bar) | 43, 42 | Fluid Connector | Inch | Hose Products | 0.75 Inch | Inch | Rubber | 1000 to 1999 PSI (69 to 138 bar) | Hydraulic | Medium | Hydraulic Industry Standard | Worldwide DIN | 422 | 43, 42 | |
| 422-12-RL | 470 in stock | 4024 in stock | $17.26/foot | FT | FT | 0.75 Inch | Rubber | 230 FT | 230 | 1525 PSI (110 bar) | 43, 42 | Fluid Connector | Inch | Hose Products | 0.75 Inch | Inch | Rubber | 1000 to 1999 PSI (69 to 138 bar) | Hydraulic | Medium | Hydraulic Industry Standard | Worldwide DIN | 422 | 43, 42 | |
| 422-16-BX | Backordered | 1113 in stock | $20.83/foot | FT | FT | 1 Inch | Rubber | 50 FT | 50 | 1275 PSI (90 bar) | 43, 42 | Fluid Connector | Inch | Hose Products | 1 Inch | Inch | Rubber | 1000 to 1999 PSI (69 to 138 bar) | Hydraulic | Medium | Hydraulic Industry Standard | Worldwide DIN | 422 | 43, 42 | |
| 422-16-RL | 524 in stock | 2917 in stock | $22.01/foot | FT | FT | 1 Inch | Rubber | 125 FT | 125 | 1275 PSI (90 bar) | 43, 42 | Fluid Connector | Inch | Hose Products | 1 Inch | Inch | Rubber | 1000 to 1999 PSI (69 to 138 bar) | Hydraulic | Medium | Hydraulic Industry Standard | Worldwide DIN | 422 | 43, 42 | |
| 422-4-BX | Backordered | Backordered | $7.75/foot | FT | FT | 0.25 Inch | Rubber | 50 FT | 50 | 3250 PSI (220 bar) | 43, 42 | Fluid Connector | Inch | Hose Products | 0.25 Inch | Inch | Rubber | 3000 to 3999 PSI (207 to 276 bar) | Hydraulic | Medium | Hydraulic Industry Standard | Worldwide DIN | 422 | 43, 42 | |
| 422-4-RL | 548 in stock | 5073 in stock | $6.62/foot | FT | FT | 0.25 Inch | Rubber | 450 FT | 450 | 3250 PSI (220 bar) | 43, 42 | Fluid Connector | Inch | Hose Products | 0.25 Inch | Inch | Rubber | 3000 to 3999 PSI (207 to 276 bar) | Hydraulic | Medium | Hydraulic Industry Standard | Worldwide DIN | 422 | 43, 42 | |
| 422-4-RL-250 | Backordered | Backordered | $18.31/foot | FT | FT | 0.25 Inch | Rubber | 250 FT | 250 | 3250 PSI (220 bar) | 43, 42 | Fluid Connector | Inch | Hose Products | 0.25 Inch | Inch | Rubber | 3000 to 3999 PSI (207 to 276 bar) | Hydraulic | Medium | Hydraulic Industry Standard | Worldwide DIN | 422 | 43, 42 | |
| 422-5-BX | Backordered | Backordered | $9.25/foot | FT | FT | 0.313 Inch | Rubber | 50 FT | 50 | 3125 PSI (220 bar) | 43, 42 | Fluid Connector | Inch | Hose Products | 0.313 Inch | Inch | Rubber | 3000 to 3999 PSI (207 to 276 bar) | Hydraulic | Medium | Hydraulic Industry Standard | Worldwide DIN | 422 | 43, 42 | |
| 422-5-RL | 601 in stock | 132 in stock | $7.49/foot | FT | FT | 0.313 Inch | Rubber | 400 FT | 400 | 3125 PSI (220 bar) | 43, 42 | Fluid Connector | Inch | Hose Products | 0.313 Inch | Inch | Rubber | 3000 to 3999 PSI (207 to 276 bar) | Hydraulic | Medium | Hydraulic Industry Standard | Worldwide DIN | 422 | 43, 42 | |
| 422-6-BX | Backordered | Backordered | $8.73/foot | FT | FT | 0.375 Inch | Rubber | 50 FT | 50 | 2600 PSI (180 bar) | 43, 42 | Fluid Connector | Inch | Hose Products | 0.375 Inch | Inch | Rubber | 2000 to 2999 PSI ( 138 to 207 bar) | Hydraulic | Medium | Hydraulic Industry Standard | Worldwide DIN | 422 | 43, 42 | |
| 422-6-RL | 349 in stock | 8438 in stock | $7.07/foot | FT | FT | 0.375 Inch | Rubber | 350 FT | 350 | 2600 PSI (180 bar) | 43, 42 | Fluid Connector | Inch | Hose Products | 0.375 Inch | Inch | Rubber | 2000 to 2999 PSI ( 138 to 207 bar) | Hydraulic | Medium | Hydraulic Industry Standard | Worldwide DIN | 422 | 43, 42 | |
| 422-6-RL-250 | Backordered | Backordered | $19.50/foot | FT | FT | 0.375 Inch | Rubber | 250 FT | 250 | 2600 PSI (180 bar) | 43, 42 | Fluid Connector | Inch | Hose Products | 0.375 Inch | Inch | Rubber | 2000 to 2999 PSI ( 138 to 207 bar) | Hydraulic | Medium | Hydraulic Industry Standard | Worldwide DIN | 422 | 43, 42 | |
| 422-8-BX | Backordered | Backordered | $9.66/foot | FT | FT | 0.5 Inch | Rubber | 50 FT | 50 | 2325 PSI (160 bar) | 43, 42 | Fluid Connector | Inch | Hose Products | 0.5 Inch | Inch | Rubber | 2000 to 2999 PSI ( 138 to 207 bar) | Hydraulic | Medium | Hydraulic Industry Standard | Worldwide DIN | 422 | 43, 42 | |
| 422-8-RL | 43 in stock | 7196 in stock | $7.83/foot | FT | FT | 0.5 Inch | Rubber | 400 FT | 400 | 2325 PSI (160 bar) | 43, 42 | Fluid Connector | Inch | Hose Products | 0.5 Inch | Inch | Rubber | 2000 to 2999 PSI ( 138 to 207 bar) | Hydraulic | Medium | Hydraulic Industry Standard | Worldwide DIN | 422 | 43, 42 | |
| 422-8-RL-250 | Backordered | 124 in stock | $21.58/foot | FT | FT | 0.5 Inch | Rubber | 250 FT | 250 | 2325 PSI (160 bar) | 43, 42 | Fluid Connector | Inch | Hose Products | 0.5 Inch | Inch | Rubber | 2000 to 2999 PSI ( 138 to 207 bar) | Hydraulic | Medium | Hydraulic Industry Standard | Worldwide DIN | 422 | 43, 42 |
