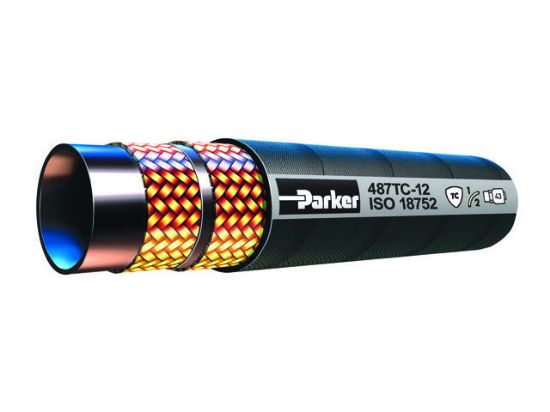

487TC Series - 487TC-4-RL

Name: 487TC Series - 487TC-4-RL
SKU: 487TC-4-RL
Price: 5.81 USD
Availability: InStock

High Tough Cover Constant Pressure 4000 PSI Hydraulic Hose

Availability:

1939 in stock

Olivette, MO	561
Springfield, MO	431
Wichita, KS	390
Joplin, MO	350
WICHITA, KS	156
Peoria, IL	23
Kansas City, KS	22
TOPEKA, KS	3

SKU 487TC-4-RL

$5.81

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Inner Diameter	0.25 Inch
Material	Rubber	Mating Fitting Series	43
Working Pressure	4,000 psi (28 MPa)	Parker Group	Fluid Connector
Inch/Metric	Inch	Parker Division	Hose Products
Inner Diameter	0.25 Inch	Inner Diameter Inch/mm	Inch
Material	Rubber	Application	Hydraulic
Working Pressure Range	4000 to 4999 PSI (276 to 345 bar)	Hose Category	Hydraulic Industry Standard
Operating Temperature	-40°F to +257°F (-40°C to +125°C)	Trade Name	GlobalCore
Mating End Fitting Series	43	Specification	ISO 18752
ISO 18752 Performance	AC	Minimum Bend Radius	2 Inch
Series	487TC	Hose Pressure Range	High
Distinct Properties	Tough Cover Constant Pressure 4000 PSI	Working Pressure	4,000 psi (28 MPa)
