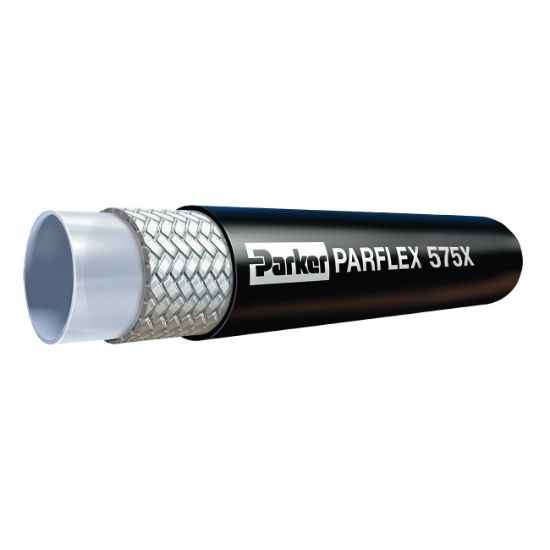

575XN-8 - 5,000 PSI Hydraulic Hose - 575X/575XN

Parflex 575X Fast Response Constant Pressure Hoses are designed for applications such as offshore drilling, that require fast response times.

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	697 in stock

SKU 575XN-8

$20.82/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/2
Cover Material	Nylon	Minimum Operating Temperature	-40 °C
Media	Air	Design Factor	4:1
Maximum Operating Temperature	100 °C	Size	-8
Inside Diameter	13 mm	Minimum Bend Radius	102 mm
Hose Inner Tube Material	Polyamide (PA)	Maximum Operating Pressure	5000 psi
Cover Material	Polyamide (PA)	Weight	0.14 lb/ft
Outside Diameter	20.6 mm	Specifications Met	DNV GL
Compatible Fitting	CG Series	Hose Reinforcement Material	Aramid Fiber
