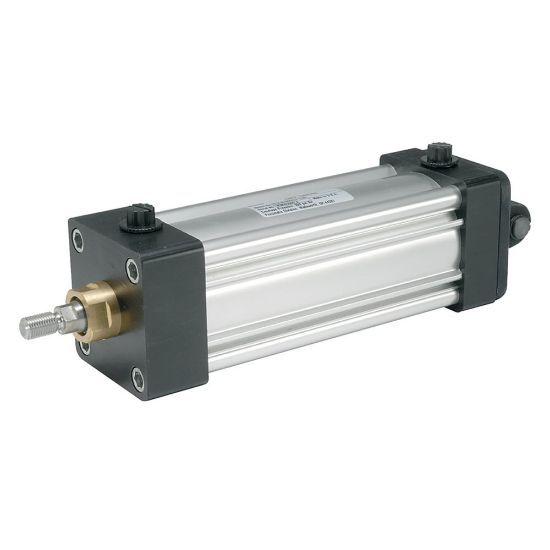

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

5.00TEF4MAU19A09.00

Manufacturer: Parker Hannifin

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 5.00TEF4MAU19A09.00

$538.40/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Clear Anodized Aluminum Alloy
Series	4MA	Style	Tie Rod, NFPA
Lube Specification	Non Lube Design	Port Size	1/2 Inch
Corrosion Resistant	Yes	Stroke Length	9 Inch
Filtration Required	40 micron	Bumpers	w/o Bumpers
Max. Pressure	250 psig	Seal Type	Lipseal
Rod Thread Type	UNF	Rod Diameter	1 Inch
Max. Temperature Range	165 °F	Mounting Style	MS4 - MX5
Piston No.	1	Rod End Style	Female, Short
Seal Material	Nitrile	Min. Temperature Range	-10 °F
Rod End Thread	3/4-16	Mounting Style Code	TEF
Magnetic Ring	Yes	Bore Size	5 Inch
Cushions	Non Cushioned	End Type	Single Rod
Rod Material	Case Hardened, Chrome-Plated Carbon Steel	Port Type	NPTF
Filter Media	Filtered Air
