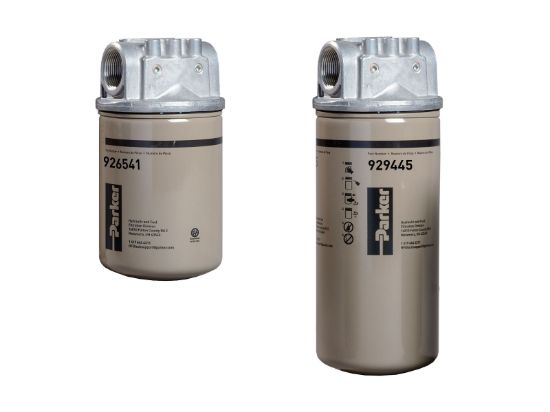

50AT10CN25DDH - 50AT Series Low Pressure Filter

Name: 50AT10CN25DDH - 50AT Series Low Pressure Filter
SKU: 50AT10CN25DDH
Price: 51.68 USD
Availability: LimitedAvailability

50AT Series Hydraulic and Lube Oil Low Pressure Filter

Availability:

2 Limited Stock

Kansas City, KS

Partner Available:

9 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 50AT10CN25DDH

$51.68/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
Pkg Qty	1	Operating Temperature	-40F to 225F (-40C to 107C)
Element Length	Single	Nominal Filter Rating	10 micron
Seals	Nitrile	Indicator Type	No Indicator
Bypass	25 PSI (1.7 bar)	Gauge Port Location	Inlet And Outlet - Both Sides
Max Pressure - Non-Fatigue MAOP	150 psi (10.3 bar)	Port	1 1/4 NPT
Nominal Flow Rating	35 GPM (132 LPM)	Replacement Element	926169
Parker Group	Filtration	Parker Division	Hydraulic Filter
Operating Temperature	-40F to 225F (-40C to 107C)	Filter Type	Low Pressure Filter
Nominal Filter Micron Rating	10 micron	Element Length	Single
Port Type	NPT	Indicator Type	No Indicator
Bypass	25 PSI (1.7 bar)	Gauge Port Location	Inlet And Outlet - Both Sides
Seals	Nitrile	Max Pressure - Non-Fatigue MAOP	150 PSI (10.3 bar)
Filter Media Code	10C	Filter Media Type	Cellulose
Nominal Flow Rating	30 GPM (114 LPM)	Series	50AT
Port	1 1/4 NPT

Product resources

12AT/50AT/80AT/80UT Series (PDF)
