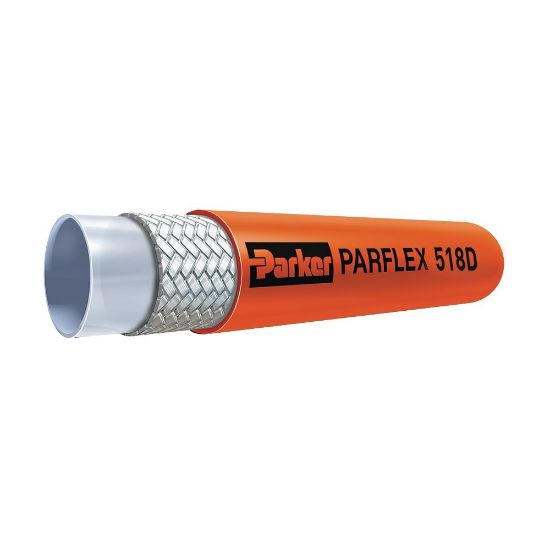

518D-6-6

Parker’s Non-Conductive Thermoplastic Hose, 518D, has a high density braid to handle maximum impulse life without the loss of flexibility. The lay lines on this 100R7 list both ANSI and SAE maximum working pressures. It is the optimal solution for medium pressure hydraulic service where hydraulic circuit exposure and contact with high voltage may be encountered. Parflex 518D Series can also be used with field attachable fittings on sizes -3, -4, -8 and -10. Using field attachable fittings allows operators to quickly, and easily, make hose assemblies in the field without a crimper.

Features:

Nylon core sizes 518D feature maximum resistance to permeable fluids

518D-4 – Super high-density braid for maximum impulse life without loss of flexibility.

Improved abrasion resistance.

Available as a formed hose and/or bonded hose assembly

Low coefficient of friction cover

Twin or multi-line constructions available

Applications:

Medium pressure hydraulic service where hydraulic circuit exposure and contact with high voltage may be encountered

Turf equipment and grounds maintenance

Utility trucks

Aerial Lift

Certifications/Compliance:

Meets SAE J517 electrical standards (non-conductivity)

Meets/Exceeds SAE J517 100R7

DNV-GL Type Approved

ANSI A92.2

ISO 3949-R7-2

Technical Specifications:

Tube: Nylon, except -16. 518D-16 - Copolyester

Reinforcement: Fiber

Cover: Polyurethane Note:

Lay lines on hoses will have both ANSI and SAE maximum pressure listed; ANSI A92.2 “Vehicle Mounted Elevating and Rotating Aerial Devices”

Only the SAE pressures are listed in the table. Review CAT 4660 to view ANSI and SAE pressures.

+/- 2% Change in length at maximum working pressure

Hose I.D. is nominal

Hose O.D. is maximum

Markets:

Machine Tool|Industrial|Mobile Equipment|Transportation|Material Handling
