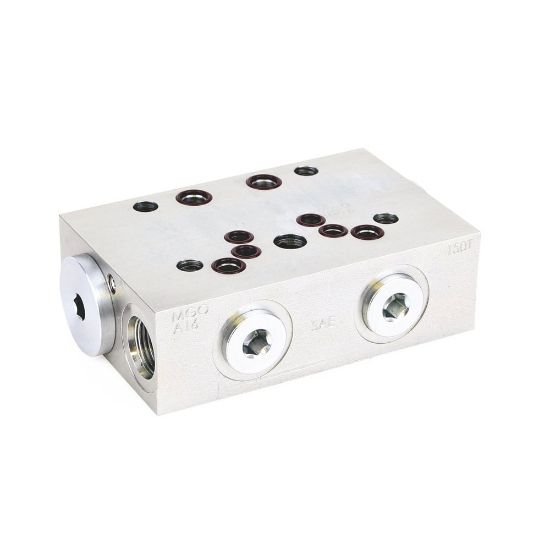

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

562574

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 562574

$1,752.75/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Type	Divider Valve
Maximum Working Pressure	413 bar; 6000 psi	Material	Carbon Steel
Series	MGO	Number of Outlets	2
Outlet Thread Type	SAE ORB	Minimum Working Pressure	200 PSI
Divider Valve Series	MGO	Maximum Cycle Rate	180 cycles/min
Maximum Operating Temperature	176 °C	Maximum NLGI Grade	#2
Compatible Material	Oil; Grease	Outlet Thread Gender	Female
Discharge Per Piston Stroke	0.150 Cubic Inch	Model	Trabon
Outlet Size	7/8 Inch
