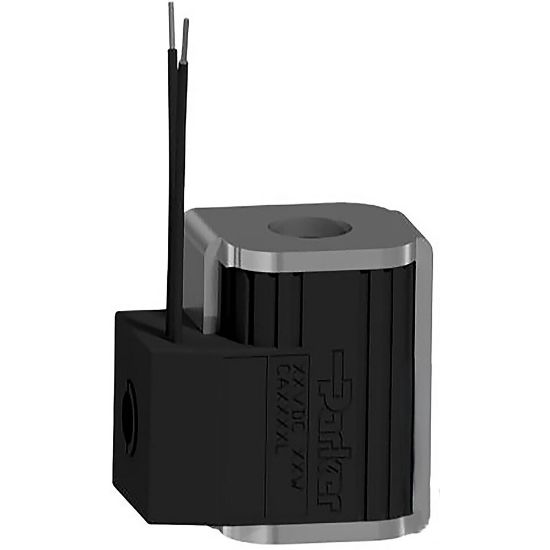

CAP012L - 5/8" Super Coil

Name: CAP012L - 5/8" Super Coil
SKU: CAP012L
Price: 38.54 USD
Availability: InStock

Parker’s broad range of solenoid and proportional cartridge valves are complemented by a wide selection of options in the Super Coil series of IP69K DC and AC coils. Multiple voltage and termination styles are standard cataloged options.

Availability:

5 in stock

Kansas City, KS

Partner Available:

60 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU CAP012L

$38.54/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Voltage	12 VDC
Connection Type	Dual Lead Wire	Diode	No
Power Consumption	28 - High Watt	Minimum Operating Temperature	-40 °C
For Fluid Type	n/a	Flow Rate	n/a
Body Material	n/a	Seal Material	n/a
Maximum Operating Pressure	n/a	Maximum Flow Rate	n/a
Maximum Operating Temperature	200 °C	Weight	0.29 kg
Duty Cycle	Continuous @ 100% Voltage	Actuation Type	n/a
Function	5/8" Super Coil	Current	2.33 A
Coil Type	Puissant	Resistance	5.14 Ω

Customers who bought this item also bought

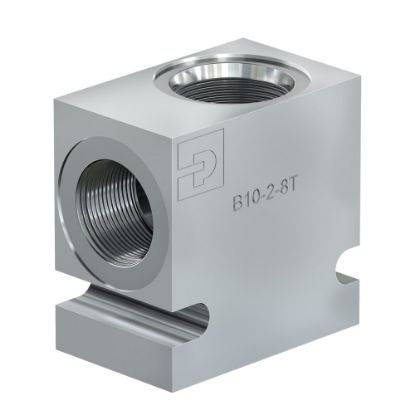

B10-2-8T - Standard Bodies
