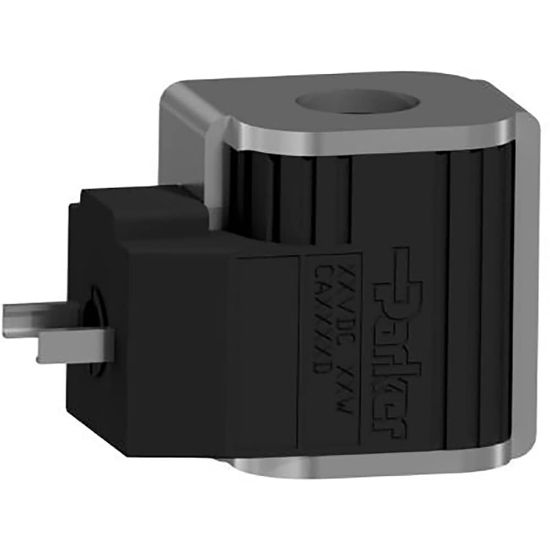

CAP115D - 5/8" Super Coil

Name: CAP115D - 5/8" Super Coil
SKU: CAP115D
Price: 57.11 USD
Availability: InStock

Parker’s broad range of solenoid and proportional cartridge valves are complemented by a wide selection of options in the Super Coil series of IP69K DC and AC coils. Multiple voltage and termination styles are standard cataloged options.

Availability:

8 in stock

Olivette, MO

Partner Available:

107 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU CAP115D

$57.11/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Din
Diode	No	Voltage	115 VAC
Power Consumption	28 - High Watt	Duty Cycle	Continuous @ 100% Voltage
Weight	0.64 lb	Function	5/8" Super Coil
Current	0.26 A	Coil Type	Puissant
Resistance	417 Ω
