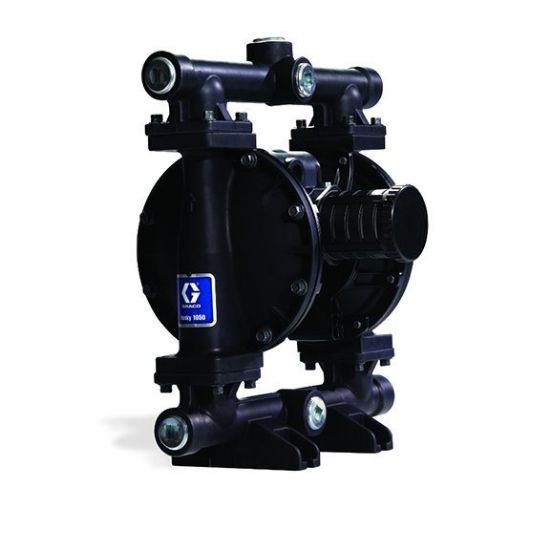

647015

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 647015

Products specifications

Attribute name	Attribute value
UOM	EA	Type	Pneumatic
Weight	23 lb	Maximum Flow Rate	50 GPM
Ball Material	Acetal	Material	Aluminum
Seat Material	TPE (Hytrel)	Series	1050
Connection Type	Threaded	Air Exhaust Port Thread Gender	Female
Diaphragm Compatible Material	PTFE	Fluid Inlet Thread Gender	Female
Air Exhaust Port Size	3/4 Inch	Manifold Configuration	Center Port;End Port
Air Inlet Thread Gender	Female	Air Inlet Thread Type	NPT
Fluid Outlet Thread Type	NPT	Fluid Outlet Size	1 Inch
Maximum Cycle Rate	280 CPM	Maximum Air Consumption	67 SCFM
Model	Husky	Air Exhaust Port Thread Type	NPT
Air Inlet Size	1/2 Inch	Fluid Inlet Thread Type	NPT
Fluid Inlet Size	1 Inch	Fluid Outlet Thread Gender	Female
Maximum Solid Size	0.125 Inch	Diaphragm Material	PTFE/EPDM 2-Piece
