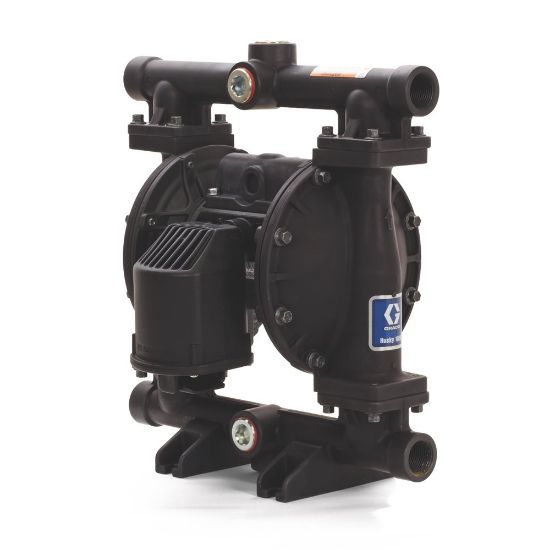

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

647016

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 647016

Products specifications

Attribute name	Attribute value
UOM	EA	Seat Material	TPE (Hytrel)
Material	Aluminum	Connection Type	Threaded
Series	1050	Air Exhaust Port Thread Gender	Female
Type	Pneumatic	For Use With	Water / Anti-freeze / Fuel Transfer
Maximum Flow Rate	50 GPM	Weight	23 lb
Ball Material	Acetal	Air Inlet Thread Type	NPT
Fluid Outlet Thread Type	NPT	Fluid Outlet Size	1 Inch
Diaphragm Material	TPE (Hytrel)	Maximum Cycle Rate	280 CPM
Model	Husky	Overall Height	15.9 Inch
Air Inlet Size	1/2 Inch	Air Exhaust Port Thread Type	NPT
Maximum Operating Temperature	150 deg F	Fluid Inlet Size	1 Inch
Maximum Solid Size	0.125 Inch	Fluid Inlet Thread Type	NPT
Fluid Outlet Thread Gender	Female	Maximum Air Consumption	25 SCFM
Fluid Inlet Thread Gender	Female	Air Exhaust Port Size	3/4 Inch
Air Inlet Thread Gender	Female
