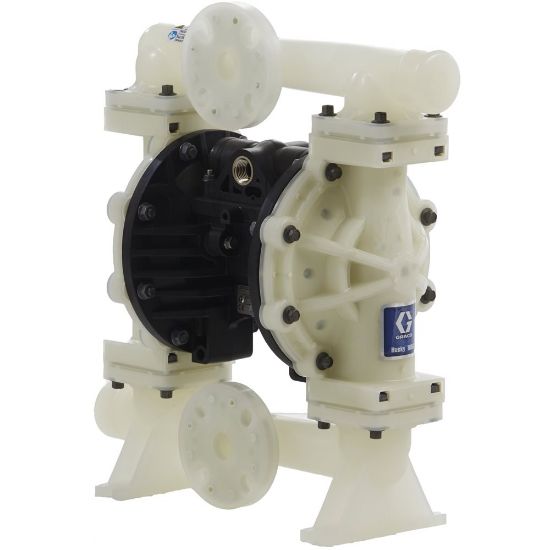

649002

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 649002

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Polypropylene
Type	Pneumatic	Connection Type	Center Flange ANSI/DIN
Weight	18 lb	Series	1050
Maximum Flow Rate	50 GPM	Ball Material	Buna-N
Air Exhaust Port Thread Gender	Female	Air Exhaust Port Size	3/4 Inch
Air Inlet Thread Gender	Female	Air Inlet Thread Type	NPT
Manifold Configuration	Center Port	Maximum Cycle Rate	280 CPM
Fluid Outlet Size	1 Inch	Maximum Air Consumption	67 SCFM
Air Inlet Size	1/2 Inch	Diaphragm Material	Buna-N
Diaphragm Compatible Material	Buna	Air Exhaust Port Thread Type	NPT
Model	Husky	Maximum Operating Temperature	150 deg F
Fluid Inlet Size	1 Inch	Maximum Solid Size	0.125 Inch
