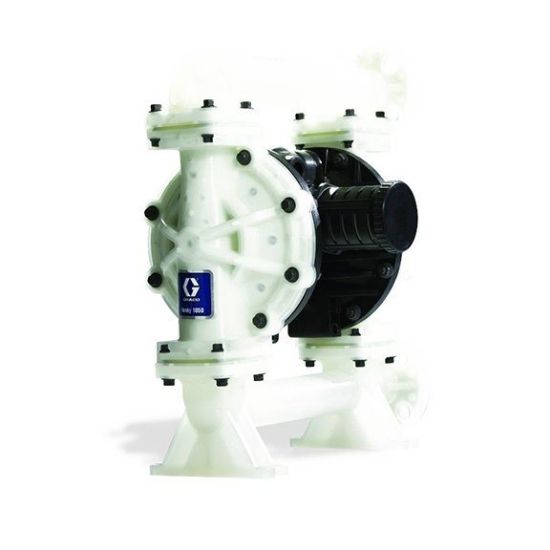

649028

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 649028

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Polypropylene
Type	Pneumatic	Connection Type	End Flange ANSI/DIN
Weight	18 lb	Series	1050
Maximum Flow Rate	50 GPM	Ball Material	TPE (Hytrel)
Air Exhaust Port Thread Gender	Female	Model	Husky
Air Exhaust Port Thread Type	NPT	Maximum Operating Temperature	150 deg F
Air Inlet Size	1/2 Inch	Fluid Inlet Size	1 Inch
Maximum Solid Size	0.125 Inch	Diaphragm Compatible Material	TPE
Air Exhaust Port Size	3/4 Inch	Air Inlet Thread Gender	Female
Fluid Outlet Size	1 Inch	Maximum Cycle Rate	280 CPM
Diaphragm Material	TPE (Hytrel)	Manifold Configuration	End Port
Air Inlet Thread Type	NPT	Maximum Air Consumption	67 SCFM
