*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

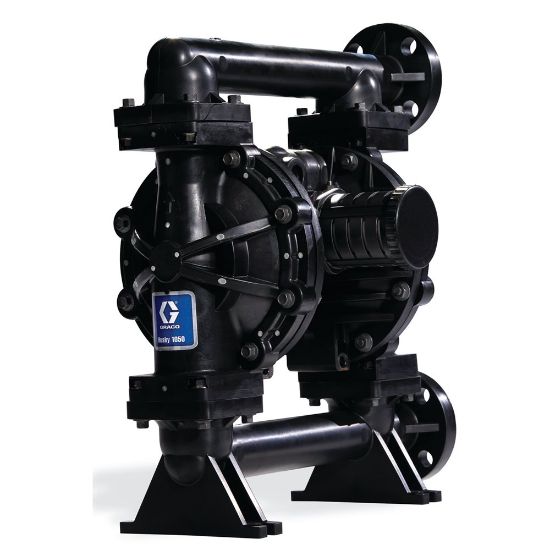

649389

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 649389

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Flow Rate	50 GPM
Weight	26 lb	Ball Material	Fluoroelastomer
Material	PVDF	Seat Material	Fluoroelastomer
Series	1050	Connection Type	Center Flange ANSI/DIN
Air Exhaust Port Thread Gender	Female	Type	Pneumatic
Air Exhaust Port Size	3/4 Inch	Air Inlet Thread Gender	Female
Air Inlet Thread Type	NPT	Maximum Cycle Rate	280 CPM
Fluid Outlet Size	1 Inch	Maximum Air Consumption	67 SCFM
Manifold Configuration	Center Port	Air Exhaust Port Thread Type	NPT
Model	Husky	Center Section Material	Polypropylene
Air Inlet Size	1/2 Inch	Fluid Inlet Size	1 Inch
Maximum Solid Size	0.125 Inch	Diaphragm Material	Fluoroelastomer
Diaphragm Compatible Material	FKM
