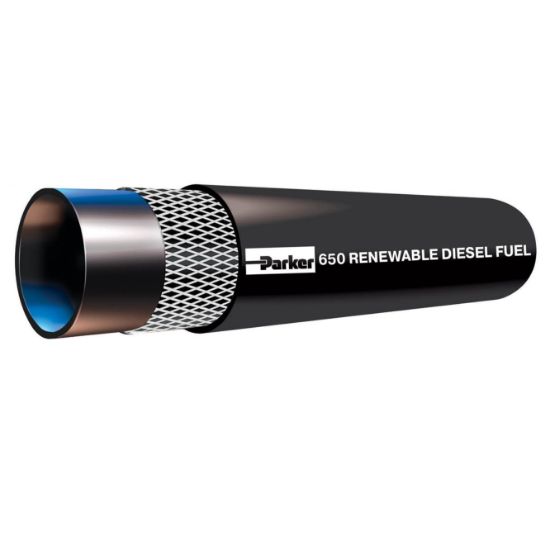

Picture of 650 Renewable Diesel Fuel Hose - 650-10-RL

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

650 Renewable Diesel Fuel Hose - 650-10-RL

650 Renewable Diesel Fuel Hose not only handles all gasoline and diesel requirements, but it is also compatible with renewable biodiesels up to 100%. 650 is compatible with HY series fittings and available with J2044 connections.
Availability:
Backordered
SKU 650-10-RL
$5.27
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTMaximum Operating Temperature275 °F
Weight0.34 kg/ftCover MaterialBlack synthetic rubber
Maximum Operating Pressure24.1 barSpecifications MetSAE J30R7
Minimum Bend Radius127 mmHose Inside Diameter5/8 inch
Hose Outside Diameter23.8 mmApplicationMedia Transfer
DivisionHose Products DivisionHose Inner Tube MaterialBlack synthetic rubber
Minimum Operating Temperature-40 °CHose Reinforcement MaterialMultiple aramid plies
MediaFuels
Product resources

Literature and Reference Materials
