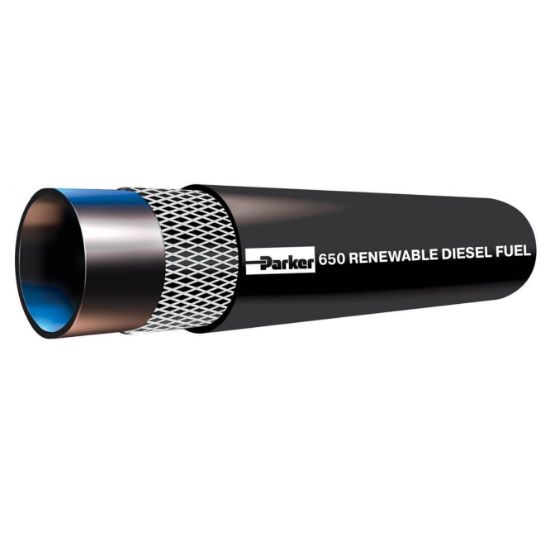

650-4-RL - 650 Renewable Diesel Fuel Hose

650 Renewable Diesel Fuel Hose not only handles all gasoline and diesel requirements, but it is also compatible with renewable biodiesels up to 100%. 650 is compatible with HY series fittings and available with J2044 connections.

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	2450 in stock

SKU 650-4-RL

$2.40/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Specifications Met	SAE J30R7
Maximum Operating Temperature	125 °C	Hose Outside Diameter	12.7 mm
Hose Inner Tube Material	Black synthetic rubber	Minimum Operating Temperature	-40 °F
Maximum Operating Pressure	27.6 bar	Minimum Bend Radius	1.50 inch
Media	Fuels	Hose Reinforcement Material	Multiple aramid plies
Weight	0.13 kg/ft	Hose Inside Diameter	6.4 mm
Cover Material	Black synthetic rubber
