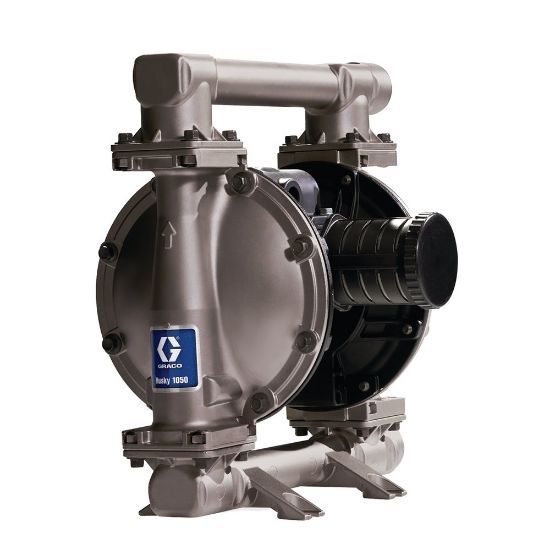

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

651000

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 651000

Products specifications

Attribute name	Attribute value
UOM	EA	Type	Pneumatic
Maximum Flow Rate	50 GPM	Weight	41.4 lb
Ball Material	316 Stainless Steel	Series	1050
Material	Stainless Steel	Connection Type	Threaded
Air Exhaust Port Thread Gender	Female	Overall Height	13.7 Inch
Diaphragm Material	PTFE/EPDM 2-Piece	Diaphragm Compatible Material	PTFE
Maximum Operating Temperature	220 deg F	Air Exhaust Port Size	3/4 Inch
Center Section Material	Aluminum	Fluid Inlet Thread Gender	Female
Air Inlet Thread Gender	Female	Air Inlet Thread Type	NPT
Fluid Outlet Size	1 Inch	Maximum Cycle Rate	280 CPM
Fluid Outlet Thread Type	NPT	Manifold Configuration	End Port;Center Port
Maximum Air Consumption	67 SCFM	Air Inlet Size	1/2 Inch
Air Exhaust Port Thread Type	NPT	Model	Husky
Fluid Inlet Size	1 Inch	Fluid Inlet Thread Type	NPT
Maximum Solid Size	0.125 Inch	Fluid Outlet Thread Gender	Female
