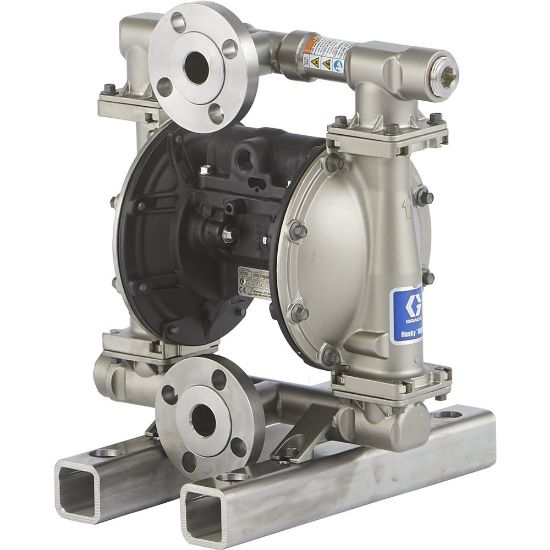

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

651506

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 651506

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Stainless Steel
Type	Pneumatic	Connection Type	Center Flange ANSI/DIN;Horizontal Outlet
Weight	41.4 lb	Series	1050
Maximum Flow Rate	50 GPM	Ball Material	316 Stainless Steel
Air Exhaust Port Thread Gender	Female	Air Inlet Thread Type	NPT
Manifold Configuration	Center Port	Maximum Cycle Rate	280 CPM
Fluid Outlet Size	1 Inch	Maximum Air Consumption	67 SCFM
Air Inlet Size	1/2 Inch	Air Exhaust Port Thread Type	NPT
Model	Husky	Fluid Inlet Size	1 Inch
Diaphragm Material	PTFE/EPDM 2-Piece	Maximum Solid Size	0.125 Inch
Diaphragm Compatible Material	PTFE	Air Exhaust Port Size	3/4 Inch
Center Section Material	Aluminum	Air Inlet Thread Gender	Female
