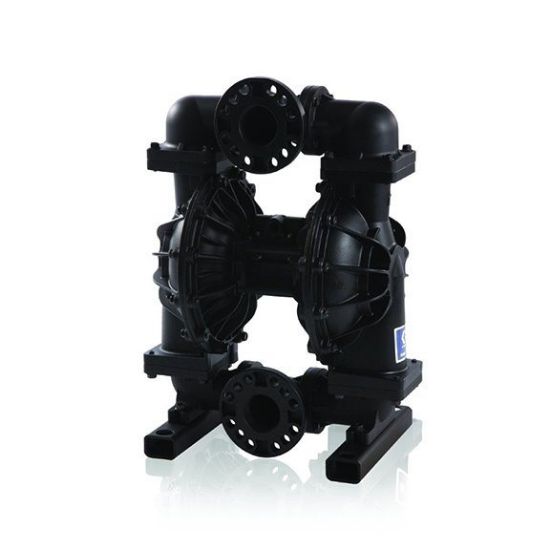

652110

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 652110

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Aluminum
Type	Pneumatic	Connection Type	Center Flange ANSI/DIN;Threaded
Weight	150 lb	Series	3300
Maximum Flow Rate	300 GPM	Ball Material	PTFE
Seat Material	Stainless Steel	Air Exhaust Port Thread Gender	Female
Diaphragm Compatible Material	Santoprene	Minimum Operating Temperature	32 deg F
Air Inlet Thread Type	NPT	Maximum Cycle Rate	103 CPM
Manifold Configuration	Center Port	Air Inlet Size	3/4 Inch
Model	Husky	Air Exhaust Port Thread Type	NPT
Fluid Inlet Thread Type	BSPT	Maximum Solid Size	0.5 Inch
Diaphragm Material	Santoprene	Maximum Air Consumption	335 SCFM
Fluid Outlet Size	3 Inch	Fluid Outlet Thread Type	BSPT
Fluid Inlet Size	3 Inch	Minimum Storage Temperature	32 deg F
Air Exhaust Port Size	1 Inch	Air Inlet Thread Gender	Female
