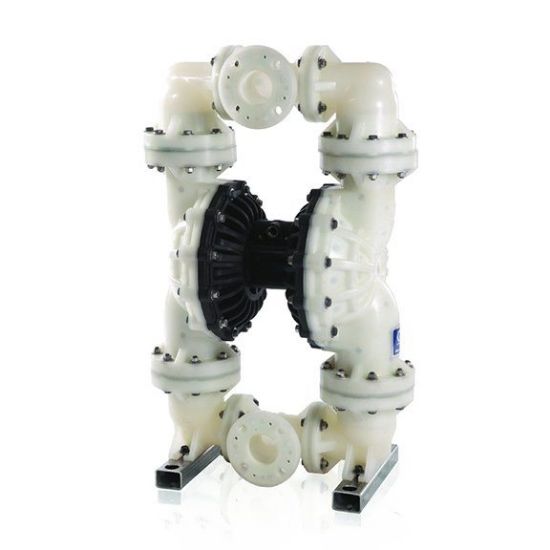

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

652435

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 652435

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Polypropylene
Type	Pneumatic	Connection Type	Center Flange ANSI/DIN
Weight	200 lb	Series	3300
Maximum Flow Rate	300 GPM	Ball Material	Santoprene
Air Exhaust Port Thread Gender	Female	Air Exhaust Port Size	1 Inch
Minimum Storage Temperature	32 deg F	Fluid Inlet Size	3 Inch
Air Inlet Thread Gender	Female	Center Section Material	Aluminum
Air Inlet Thread Type	NPT	Diaphragm Compatible Material	Santoprene
Maximum Cycle Rate	103 CPM	Minimum Operating Temperature	32 deg F
Manifold Configuration	Center Port	Air Inlet Size	3/4 Inch
Model	Husky	Air Exhaust Port Thread Type	NPT
Maximum Operating Temperature	150 deg F	Fluid Outlet Size	3 Inch
Maximum Solid Size	0.5 Inch	Diaphragm Material	Santoprene
Maximum Air Consumption	335 SCFM
