*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

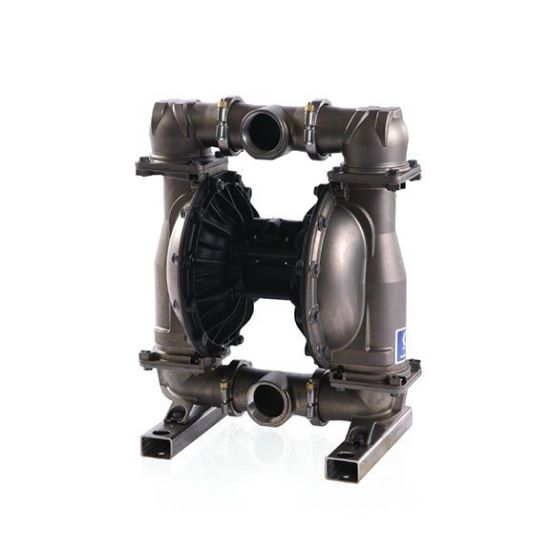

652828

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 652828

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Stainless Steel
Type	Pneumatic	Connection Type	Threaded
Weight	255 lb	Series	3300
Maximum Flow Rate	300 GPM	Ball Material	Buna-N
Air Exhaust Port Thread Gender	Female	Air Inlet Size	3/4 Inch
Diaphragm Material	Buna-N	Manifold Configuration	Center Port
Diaphragm Compatible Material	Buna	Air Exhaust Port Thread Type	NPT
Model	Husky	Fluid Outlet Size	3 Inch
Fluid Inlet Thread Type	NPT	Maximum Solid Size	0.5 Inch
Maximum Air Consumption	335 SCFM	Fluid Outlet Thread Gender	Female
Fluid Inlet Size	3 Inch	Air Exhaust Port Size	1 Inch
Fluid Inlet Thread Gender	Female	Minimum Storage Temperature	32 deg F
Center Section Material	Aluminum	Air Inlet Thread Gender	Female
Minimum Operating Temperature	32 deg F	Maximum Cycle Rate	103 CPM
Air Inlet Thread Type	NPT	Fluid Outlet Thread Type	NPT
