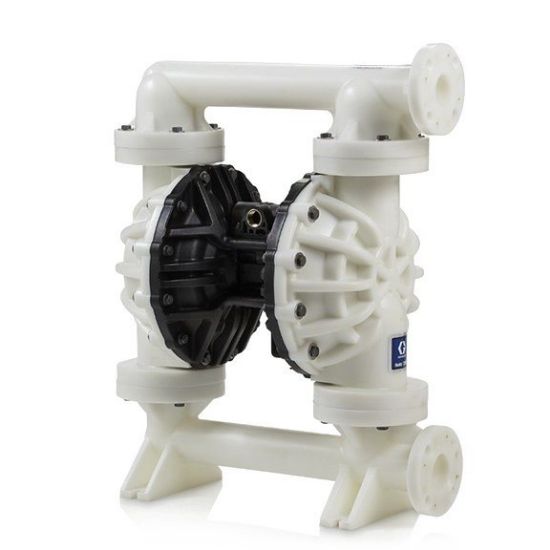

653536

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 653536

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Polypropylene
Type	Pneumatic	Connection Type	End Flange ANSI/DIN
Weight	80 lb	Series	2200
Maximum Flow Rate	200 GPM	Ball Material	PTFE
Seat Material	PVDF (Kynar)	Air Exhaust Port Thread Gender	Female
Air Inlet Size	3/4 Inch	Model	Husky
Air Exhaust Port Thread Type	NPT	Maximum Operating Temperature	150 deg F
Fluid Inlet Size	2 Inch	Maximum Air Consumption	140 SCFM
Fluid Outlet Size	2 Inch	Diaphragm Compatible Material	PTFE
Diaphragm Material	PTFE/EPDM 2-Piece	Minimum Storage Temperature	32 deg F
Maximum Solid Size	0.375 Inch	Maximum Cycle Rate	125 CPM
Air Exhaust Port Size	1 Inch	Air Inlet Thread Gender	Female
Air Inlet Thread Type	NPT	Minimum Operating Temperature	32 deg F
Manifold Configuration	End Port
