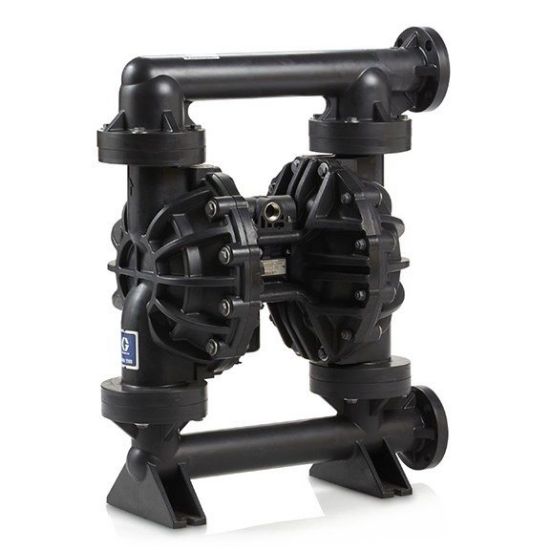

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

653546

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 653546

Products specifications

Attribute name	Attribute value
UOM	EA	Material	PVDF
Type	Pneumatic	Connection Type	End Flange ANSI/DIN
Weight	106 lb	Series	2200
Maximum Flow Rate	200 GPM	Ball Material	PTFE
Air Exhaust Port Thread Gender	Female	Maximum Cycle Rate	125 CPM
Diaphragm Compatible Material	PTFE	Air Exhaust Port Size	1 Inch
Maximum Solid Size	0.375 Inch	Minimum Storage Temperature	32 deg F
Air Inlet Thread Gender	Female	Air Inlet Thread Type	NPT
Manifold Configuration	End Port	Air Inlet Size	3/4 Inch
Minimum Operating Temperature	32 deg F	Air Exhaust Port Thread Type	NPT
Model	Husky	Center Section Material	Polypropylene
Fluid Outlet Size	2 Inch	Fluid Inlet Size	2 Inch
Maximum Air Consumption	140 SCFM	Maximum Operating Temperature	180 deg F
Diaphragm Material	PTFE/EPDM 2-Piece
