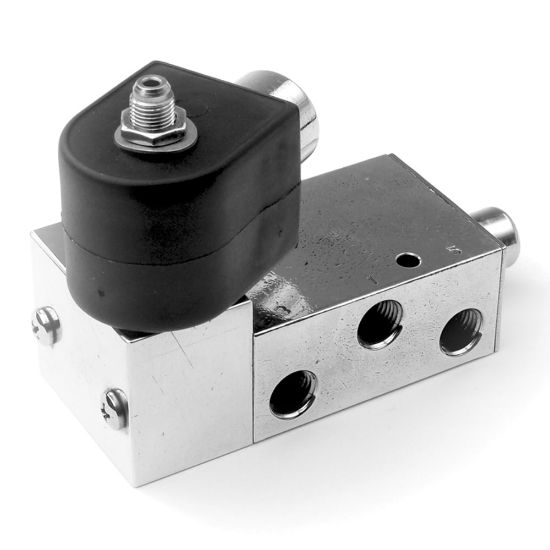

Picture of 7 Family - 4 Way (5/2) Extreme-Duty VAP Valves - 73417BN2KN7AN0H111P3

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

7 Family - 4 Way (5/2) Extreme-Duty VAP Valves - 73417BN2KN7AN0H111P3

Parker's VAP (Valve Actuation Process) control valves are used in the word's toughest applications where uptime and compliance are critical.
Availability:
Backordered
SKU 73417BN2KN7AN0H111P3
$560.74
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEABody MaterialBRASS
Port TypeNPTInput Voltage120/60, 110/50
Actuation TypeInternally PilotedInsulation ClassClass F
Maximum Fluid Temperature150.0Maximum Pressure Differential150.0
Maximum Ambient Temperature167.0Port Size1/4
Power Consumption10.0Ingress Protection RatingUL, CSA - Class 1, Div. 1, Group A,B,C,D Class 2, Div. 1, Group E,F,G - T3C
Coil Type1/2" NPT Conduit with 18" LeadsMediaAir, Inert Gas
Function2 Position, Single SolenoidValve Type4 Way (5/2)
InstallationIOM 7701Orifice Size11/64
Seal MaterialNBR - Low TempSpecifications MetUL, CSA Listed General Purpose Valve for Hazardous Locations; SIL 3; CE - Low Voltage, EMC
Main Flow Coefficient0.55Override FunctionalityMomentary Manual Override
Minimum Fluid Temperature-40.0Preventive Maintenance Kit7K701
Minimum Pressure Differential30.0Port TypeNPT
Body MaterialBrassPort Size1/4 inch
DivisionFluid Control DivisionMaximum Fluid Temperature150 °F
Maximum Pressure Differential150.0 psiActuation TypeInternal Pilot
Specifications MetEMCInput Voltage120/60 VAC
Minimum Fluid Temperature-40 °FInsulation ClassF (155°C)
Power Consumption10 WMediaInert Gases
FunctionSingle SolenoidCoil Type1/2" NPT Conduit with 18" Leads
Valve Type4-Way (5/2)Seal MaterialNBR - Low Temp
Main Flow Coefficient0.55 CvMinimum Pressure Differential30 psi
InstallationIOM 7505Orifice Size11/64 inch
Override FunctionalityMomentary Manual OverrideIngress Protection RatingGroup A,B,C,D Class 1, Div. 1
Preventive Maintenance Kit7K701Maximum Ambient Temperature167 °F
Product resources

Literature and Reference Materials
