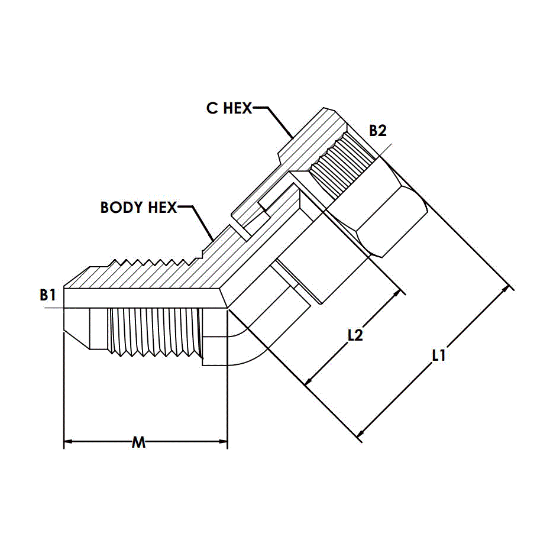

7107-04-10-FG

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 7107-04-10-FG

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
Series	7107-FG	Thread Size 2	M10X1.25
Shape	45 Degree Angle	Centerline Length	23.88 MM
Type	Elbow	Centerline Length M	18.29 MM
Thread Type	Male JIC SAE 37 Degree Flare	Thread Size 1	7/16-20
Plating	CR3	Hex C 1	14.29 MM
Thread Type 2	Female metric Swivel	Thread Drill 2	4.4 MM
Thread Drill 1	4.4 MM	Thread Specification 1	SAE J514
Raw Material Type	Steel Forging	Hex Body	11.13 MM
