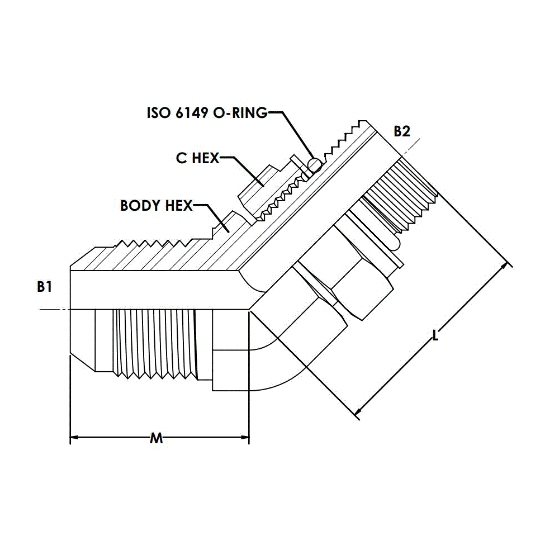

7150-10-18-NWO-FG

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 7150-10-18-NWO-FG

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
Series	7150-NWO-FG-ISO 6149	Thread Size 2	M18X1.5
Shape	45 Degree Angle	Centerline Length	34.1 MM
Type	Elbow	Centerline Length M	28.2 MM
Thread Type 2	Male Metric Adjustable ISO6149	Thread Type	Male JIC SAE 37 Degree Flare
Thread Drill 2	11 MM	Hex C 1	24 MM
Plating	CR3	Thread Size 1	7/8-14
Hex Body	22.2 MM	Thread Specification 2	ISO 6149 O-Ring Port
Thread Drill 1	12.3 MM	Thread Specification 1	SAE J514
Raw Material Type	Steel Forging	O-Ring/Seal Material	NBR
