*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

7200-06-06-SS

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 7200-06-06-SS

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Stainless Steel
Type	Elbow	Shape	90 Degree Angle
Series	7200-FG	Thread Size 2	3/8-19

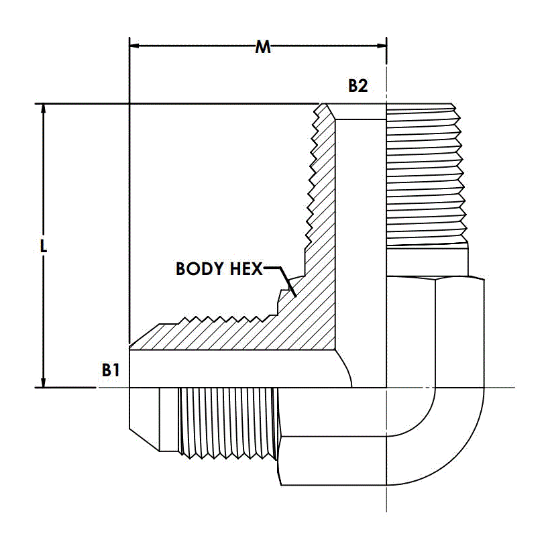

Centerline Length	31 MM	Centerline Length M	29 MM
Thread Specification 1	SAE J514	Thread Size 1	9/16-18
Thread Drill 1	7.5 MM	Thread Specification 2	ISO 7-1
Maximum Dynamic Pressure	6,000 psi	Raw Material Type	Stainless Steel Forging
Thread Type	Male JIC SAE 37 Degree Flare	Thread Type 2	Male BSPT (R)
Thread Drill 2	10.3 MM	Hex Body	19 MM
