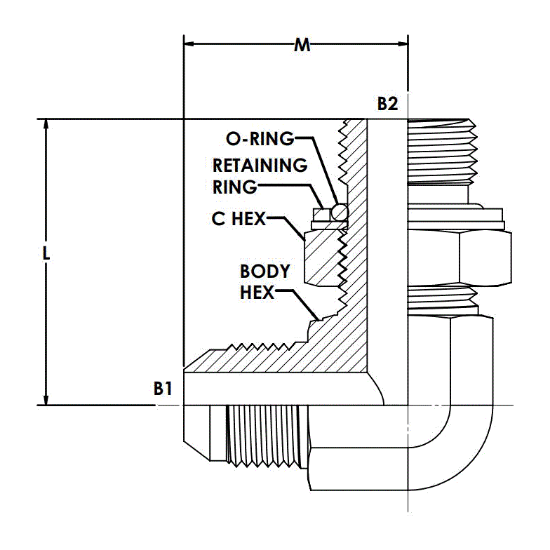

7202-04-02-NWO-FG

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 7202-04-02-NWO-FG

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
Type	Elbow	Shape	90 Degree Angle
Series	7202-NWO-FG-ORR	Thread Size 2	1/8-28
Centerline Length	26.2 MM	Centerline Length M	22.6 MM
Thread Specification 2	O-Ring and Retaining Ring; for ISO 1179 Port; ISO 8434-6; BS 5200	Hex C 1	14 MM
Thread Drill 1	4.4 MM	Raw Material Type	Steel Forging
Thread Specification 1	SAE J514	Thread Type 2	Male BSPP Adjustable ORR
O-Ring/Seal Material	NBR	Hex Body	11.1 MM
Thread Drill 2	4.2 MM	Thread Size 1	7/16-20
Maximum Dynamic Pressure	3,600 psi	Thread Type	Male JIC SAE 37 Degree Flare
Plating	CR3
