7204-06-06-FG

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 7204-06-06-FG

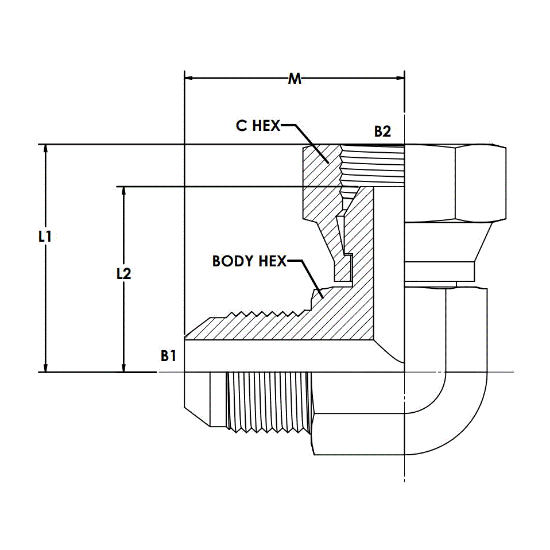

Products specifications

Attribute name	Attribute value
UOM	EA	Centerline Length M	30 MM
Series	7204-FG	Material	Steel
Thread Size 2	3/8-19	Shape	90 Degree Angle
Type	Elbow	Thread Type 2	Female BSPP Swivel
Hex Body	19 MM	Hex C 1	22 MM
Thread Specification 1	SAE J514	Thread Size 1	9/16-18
Raw Material Type	Steel Forging	Thread Drill 1	7.5 MM
Centerline Length L1	32 MM	Thread Type	Male JIC SAE 37 Degree Flare
Centerline Length L2	26 MM	Thread Specification 2	ISO 1179, ISO 8434-6, BS 5200
Thread Drill 2	7.5 MM	Plating	CR3
Maximum Dynamic Pressure	5,100 psi
