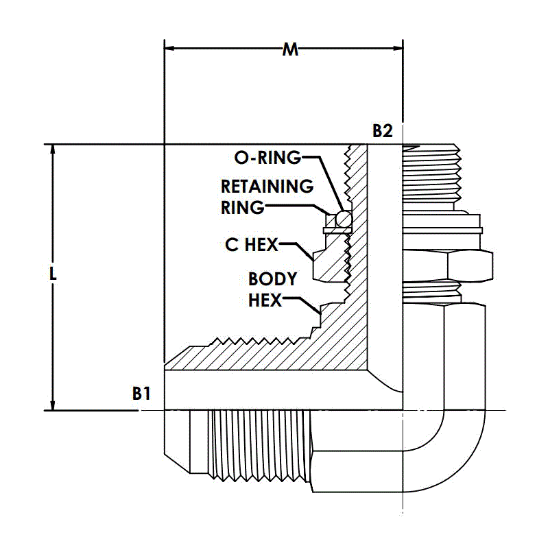

7205-08-22-NWO-FG

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	8 in stock

SKU 7205-08-22-NWO-FG

Products specifications

Attribute name	Attribute value
UOM	EA	Type	Elbow
Centerline Length M	34 MM	Material	Steel
Thread Size 2	M22X1.5	Series	7205-NWO-FG-ORR
Centerline Length	42.5 MM	Shape	90 Degree Angle
Thread Specification 1	SAE J514	Raw Material Type	Steel Forging
O-Ring/Seal Material	NBR	Thread Drill 2	14 MM
Hex C 1	27 MM	Thread Type 3	ISO 9974
Thread Size 1	3/4-16	Thread Type 2	Male Metric Adjustable ORR
Thread Type	Male JIC SAE 37 Degree Flare	Hex Body	22 MM
Thread Drill 1	9.9 MM	Plating	CR3
Thread Specification 2	O-Ring and Retaining Ring	Maximum Dynamic Pressure	5,000 psi
