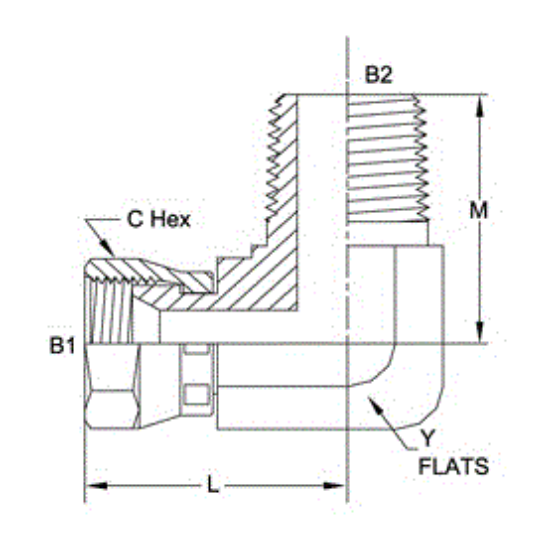

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

7220-08-08-FG

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 7220-08-08-FG

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
Series	7220-FG	Thread Size 2	1/2-14
Centerline Length	37.34 MM	Shape	90 Degree Angle
Centerline Length M1	38.59 MM	Type	Elbow
Thread Type	Female JIC Swivel 37 DEG Flare	Centerline Length M2	27.69 MM
Thread Specification 2	ISO 7-1	Thread Size 1	3/4-16
Maximum Dynamic Pressure	6,000 psi	Plating	CR3
Thread Drill 1	9.9 MM	Thread Type 2	Male BSPT (R)
Thread Drill 2	12.3 MM	Hex Body	22.2 MM
Hex C 1	22.2 MM	Raw Material Type	Steel Forging
Thread Specification 1	SAE J514
