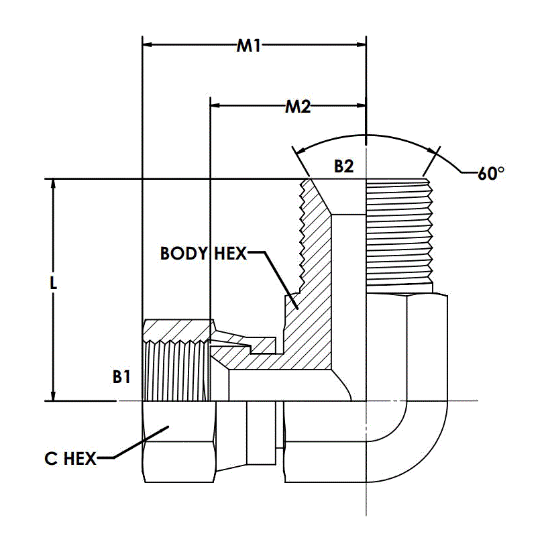

7222-08-06-FG

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 7222-08-06-FG

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
Series	7222-FG	Thread Size 2	3/8-19
Type	Elbow	Shape	90 Degree Angle
Thread Size 1	3/4-16	Thread Type 2	Male BSPP with 60 Degree Seat
Thread Drill 2	9.5 MM	Plating	CR3
Thread Drill 1	9.9 MM	Thread Specification 2	60 Degree Seat Swivel Connection; ISO 1179; ISO 8434-6; BS 5200
Maximum Dynamic Pressure	5,100 psi	Thread Specification 1	SAE J514
Raw Material Type	Steel Forging	Thread Type	Female JIC Swivel 37 DEG Flare
