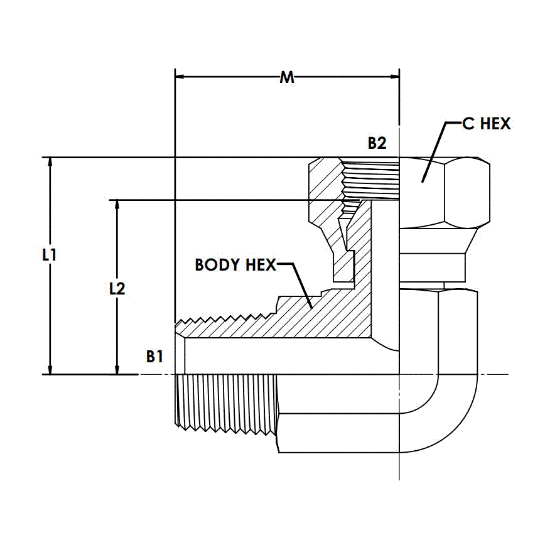

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

7223-08-08-FG

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 7223-08-08-FG

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
Type	Elbow	Shape	90 Degree Angle
Series	7223-FG	Thread Size 2	1/2-14
Thread Type 2	Female BSPP Swivel	Raw Material Type	Steel Forging
Thread Type	Male NPT	Thread Drill 1	13.5 MM
Maximum Dynamic Pressure	2,900 psi	Thread Specification 1	ANSI B1.20.1
Thread Size 1	1/2-14	Thread Drill 2	9.5 MM
Plating	CR3	Thread Specification 2	ISO 1179, ISO 8434-6, BS 5200
