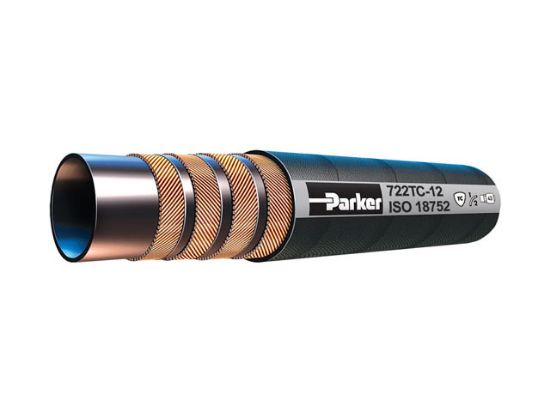

722TC Series - 722TC-8-BX

Name: 722TC Series - 722TC-8-BX
SKU: 722TC-8-BX

High Tough Cover Constant Pressure 4000 PSI Hydraulic Hose

Availability:

Backordered

SKU 722TC-8-BX

$24.40

Products specifications

Attribute name	Attribute value
UOM	FT	Inner Diameter	0.5 Inch
Material	Rubber	Mating Fitting Series	43
Working Pressure	4,000 psi (28 MPa)	Parker Group	Fluid Connector
Inch/Metric	Inch	Parker Division	Hose Products
Inner Diameter	0.5 Inch	Inner Diameter Inch/mm	Inch
Material	Rubber	Application	Hydraulic
Working Pressure Range	4000 to 4999 PSI (276 to 345 bar)	Hose Category	Hydraulic Industry Standard
Operating Temperature	-40°F to +257°F (-40°C to +125°C)	Trade Name	GlobalCore
Mating End Fitting Series	43	Specification	ISO 18752
ISO 18752 Performance	CC	Minimum Bend Radius	3 1/2 Inch
Hose Pressure Range	High	Distinct Properties	Tough Cover Constant Pressure 4000 PSI
Working Pressure	4,000 psi (28 MPa)	Series	722TC
