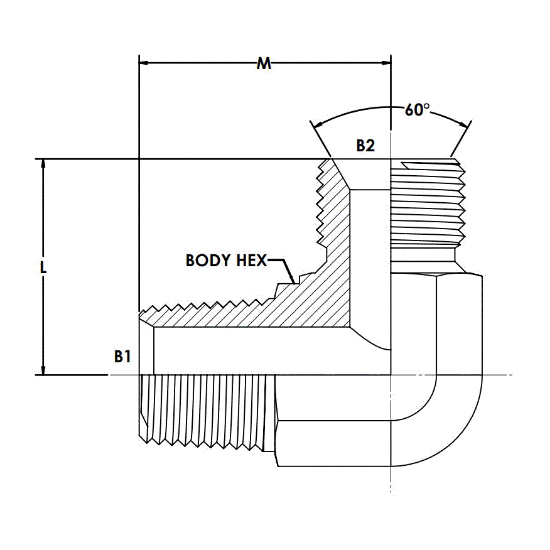

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

7232-06-08-NWO

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 7232-06-08-NWO

Products specifications

Attribute name	Attribute value
UOM	EA	Series	7232-NWO-FG
Material	Steel	Thread Size 2	1/2-14
Centerline Length	41.91 MM	Shape	90 Degree Angle
Type	Elbow	Centerline Length M	30.99 MM
Plating	CR3	Thread Specification 2	Does Not Include Retaining Ring
Hex Body	22.22 MM	Maximum Dynamic Pressure	5,000 psi
Thread Drill 2	12.3 MM	Thread Drill 1	10.3 MM
Thread Size 1	3/8-18	Raw Material Type	Steel Forging
Thread Type	Male NPT	Thread Type 3	Only 9901-08 O-Ring Assembled
Thread Type 2	Male BSPP Adjustable ORR	Thread Specification 1	ANSI B1.20.1
