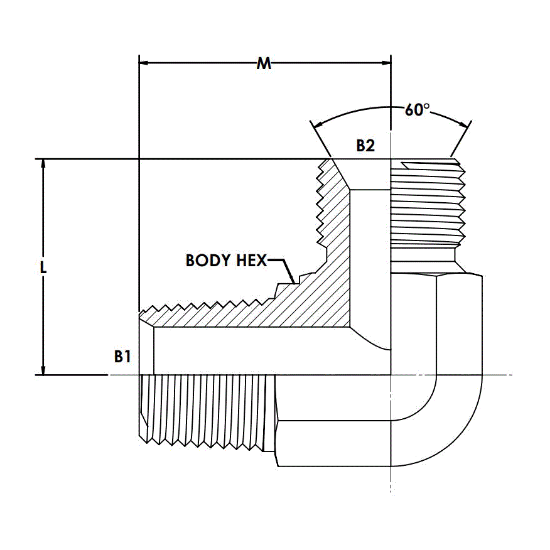

7232-16-16-FG

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 7232-16-16-FG

Products specifications

Attribute name	Attribute value
UOM	EA	Centerline Length	44.5 MM
Shape	90 Degree Angle	Type	Elbow
Centerline Length M	50.5 MM	Material	Steel
Series	7232-FG	Thread Size 2	1-11
Thread Drill 1	23.8 MM	Thread Type	Male NPT
Thread Size 1	1-11-1/2	Raw Material Type	Steel Forging
Thread Type 2	Male BSPP with 60 Degree Seat	Thread Specification 1	ANSI B1.20.1
Thread Specification 2	60 Degree Seat Swivel Connection	Thread Drill 2	22.0 MM
Hex Body	32.9 MM	Plating	CR3
Maximum Dynamic Pressure	1,700 psi
