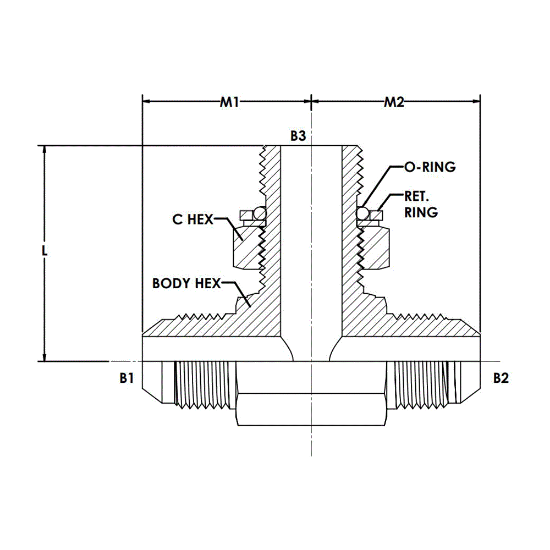

7295-05-05-10-NWO-FG

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 7295-05-05-10-NWO-FG

Products specifications

Attribute name	Attribute value
UOM	EA	Type	Tee
Weight	0.113 LB	Hex Size 1	14 MM
Standard	Prop-65 Warning	Material	Steel
Series	7295-NWO-FG-ORR	Connection Type	MJ-MJ-MMAORB RR
Style	Tee Adapter	Thread Size 2	1/2-20
Thread Type 1	Male JIC SAE 37 Degree Flare	Thread Type 2	Male JIC SAE 37 Degree Flare
Thread Specification 1	SAE J514	Raw Material Type	Steel Forging
O-Ring/Seal Material	NBR	Thread Specification 2	SAE J514
Thread Drill 3	4.4 MM	Thread Type 3	Male Metric Adjustable ORR
Plating	CR3	Thread Specification 3	Metric O-Ring & Retaining Ring; ISO 9974
Thread Drill 2	6 MM	Thread Size 3	M10 x 1.0
Thread Size 1	1/2-20	Thread Drill 1	6 MM
Body Hex	14 MM
