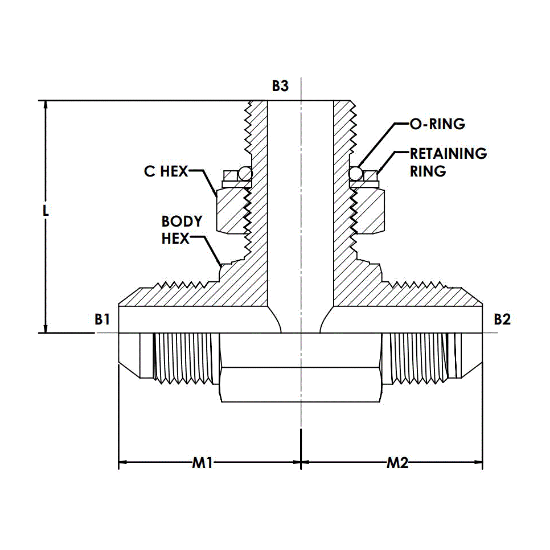

7302-04-04-02-NWO-FG

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 7302-04-04-02-NWO-FG

Products specifications

Attribute name	Attribute value
UOM	EA	Hex Size 1	14 MM
Standard	Prop-65 Warning	Series	7302-NWO-FG-ORR
Material	Steel	Style	Tee Adapter
Thread Size 2	7/16-20	Connection Type	MJ-MJ-MBSPPAORB RR
Type	Tee	Max. Dynamic Pressure	3600 psi
O-Ring/Seal Material	NBR	Thread Specification 2	SAE J514
Thread Size 1	7/16-20	Thread Drill 3	4 MM
Plating	CR3	Thread Type 1	Male JIC SAE 37 Degree Flare
Thread Specification 3	O-Ring And Retaining Ring; For ISO 1179 Port; ; ISO 8434-6; BS 5200	Thread Drill 1	4.4 MM
Thread Drill 2	4.4 MM	Thread Type 3	Male BSPP Adjustable ORR
Body Hex	11.1 MM	Thread Size 3	1/8-28
Thread Specification 1	SAE J514	Raw Material Type	Steel Forging
Thread Type 2	Male JIC SAE 37 Degree Flare
