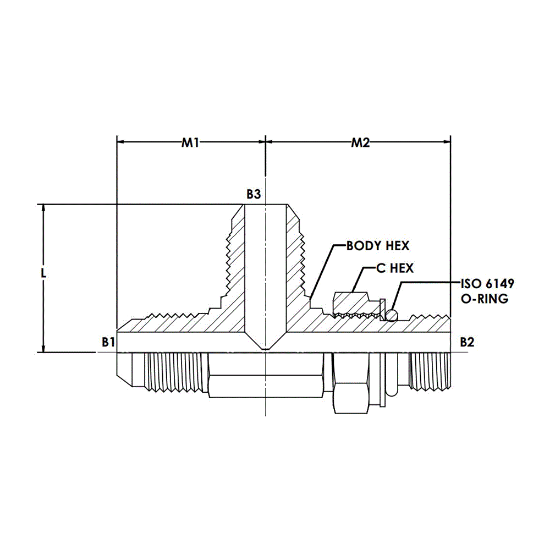

7305-06-14-06-NWO-FG

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 7305-06-14-06-NWO-FG

Products specifications

Attribute name	Attribute value
UOM	EA	Standard	Prop-65 Warning
Material	Steel	Series	7305-NWO-FG-ISO 6149
Connection Type	MJ-MMAROB-MJ	Style	Tee Adapter
Thread Size 2	M14 x 1.5	Type	Tee
Weight	0.163 LB	Hex Size 1	19 MM
Thread Type 2	Male Metric Adjustable ISO6149	Thread Drill 3	7.5 MM
Plating	CR3	Thread Drill 2	7.5 MM
Body Hex	14 MM	Thread Type 1	Male JIC SAE 37 Degree Flare
Thread Specification 2	Metric ISO 6149 Port O-Ring	Thread Specification 3	SAE J514
Thread Type 3	Male JIC SAE 37 Degree Flare	Thread Size 3	9/16-18
Thread Specification 1	SAE J514	Raw Material Type	Steel Forging
Thread Size 1	9/16-18	Thread Drill 1	7.5 MM
O-Ring/Seal Material	NBR
