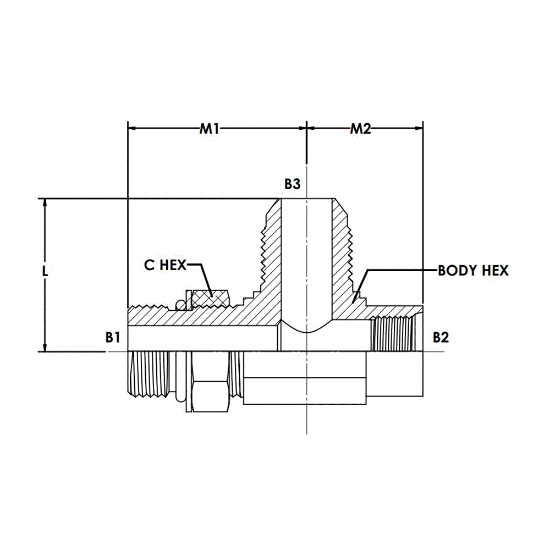

7363-10-06-10-NWO-FG

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 7363-10-06-10-NWO-FG

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
Type	Tee	Connection Type	MAORB-FBSPP-MJ
Series	7363-NWO-FG	Style	Tee Adapter
Thread Size 2	3/8-19	Standard	Prop-65 Warning
Plating	CR3	Thread Type 3	Male JIC SAE 37 Degree Flare
Thread Size 1	7/8-14	Thread Specification 3	SAE J514
Thread Drill 3	7/8-14	Thread Specification 1	SAE J514
Raw Material Type	Steel Forging	Thread Type 2	Female BSPP (G)
O-Ring/Seal Material	NBR	Thread Specification 2	ISO 1179, ISO 8434-6, BS 5200
Thread Type 1	Male SAE Adjustable Oring Boss
