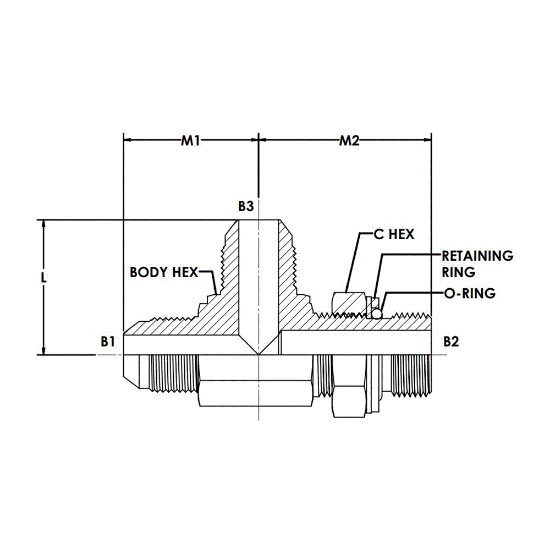

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

7402-04-02-04-NWO-FG

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 7402-04-02-04-NWO-FG

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
Type	Tee	Connection Type	MJ-MBSPPAORB RR-MJ
Series	7402-NWO-FG-ORR	Style	Tee Adapter
Hex Size 1	14 MM	Thread Size 2	1/8-28
Standard	Prop-65 Warning	Max. Dynamic Pressure	3600 psi
Thread Specification 1	SAE J514	Raw Material Type	Steel Forging
Body Hex	11.1 MM	Thread Type 2	Male BSPP Adjustable ORR
O-Ring/Seal Material	NBR	Thread Size 1	7/16-20
Thread Size 3	7/16-20	Plating	CR3
Thread Specification 3	SAE J514	Thread Type 3	Male JIC SAE 37 Degree Flare
Thread Type 1	Male JIC SAE 37 Degree Flare	Thread Specification 2	O-Ring and Retaining Ring; for ISO 1179 Port; ISO 8434-6; BS 5200
